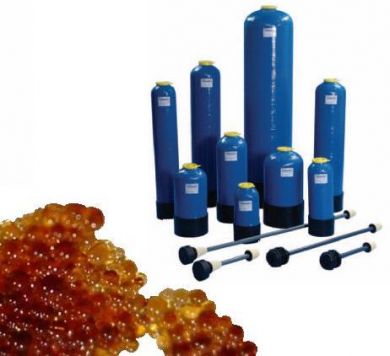

Structural, Wound Glass Ion Exchange Resin Vessel / Tower, C/W Thermax Tulsion T45-BD

Product Information

Structural, Wound Glass Resin Vessels / Towers, C/W Thermax Tulsion T45-BD

This vessel is supplied with 50% of its capacity full of Thermax Tulsion T45-BD Ion Exchange Resin

For full product details & technical specifications on these Resin Towers please click HERE

To Purchase Thermax Tulsion T45-BD Resin only please click HERE

Seals - These vessels are supplied as standard with an NBR (AKA Nitrile / Buna-N) Top Seal, which will swell when used with Bio Diesel, we therefore always recommend you purchase a replacement VITON O'Ring which is resistant to Bio Diesel

PERFORMANCE TIP - ALWAYS FEED THESE VESSELS BACKWARDS, PUMPING OIL INTO THE 'OUT' PORT, THIS RELIEVES PRESSURE AGAINST THE BOTTOM SCREEN, PROLONGING LIFE OF THE SCREEN AND SPEEDING UP THE RATE OF FLOW

About Thermax Tulsion T45-BD Ion Exchange Resin

THERMAX® TULSION T45-BD is a dry polishing media specifically formulated for removing by-products remaining after transesterification to produce biodiesel

THERMAX® TULSION T45-BD is designed for use in “purification” vessels installed after phase separation. Point of use can either be before demethylation to remove catalyst and glycerin and prevent back reactions or after demethylation as a “final” polishing step.This media may replace magnesium silicate “wash” and water wash. THERMAX® TULSION T45-BD improves plant productivity and lowers operation costs while enabling ASTM or EN specifications for B100 to be achieved

THERMAX® TULSION T45-BD has a long life before exhaustion. This life is dependent upon the point of installation in the biodiesel process and on the level of impurities in the untreated biodiesel

THERMAX® TULSION T45-BD functions both as a dehydrating (desiccant) media and as an ion exchange polishing media. As a desiccant THERMAX® TULSION T45-BD has a high loading capacity to absorb free glycerin. Trace methanol and water although being absorbed to a limited degree should be removed by stripping in the demethylation column. Additionally the exceptional exchange capacity removes residual catalyst, and salts that remains after phase separation

THERMAX® TULSION T45-BD is flowable both in the dry form and when exhausted, making it easy to handle during installation and removal from “purification” vessels. THERMAX® TULSION T45-BD is fully compatible for use in methyl ester and ethyl ester purification processes

THERMAX® TULSION T45-BD can be washed with methanol on site several time to maintain it's ability to remove glycerin

The actual life of THERMAX® TULSION T45-BD will vary depending on process designs and operating characteristic of methyl ester feed quality

Once THERMAX® TULSION T45-BD is ready for disposal, it should be disposed of in approved landfills or facilities according to local regulations. Check with your local waste management company for proper disposal instructions

Basic Features
Application Bio Diesel Purification
Matrix Stucture Cross Linked Polystyrene
Appearance Hard, Dry, Spherical Beads
Functional Group Sulfonic Acid
Ionic Form as Shipped H+
Physical & Chemical Characteristics
Moisture Retention Max 3%
Specific Gravity 1.20g / ml
Shipping Weight Approx 900g / 1 Litre
Temperature Limit (Stability) 150 Celcius
Particle Size 0.4-1.2mm
Effective Size 500-600 Microns
Operating PH Range 0-14
Oligomer Tolerance 50 ppm Max
Prices and Specification
Part Number Diameter Height Total Volume Gross Working Volume using Ion Exchange Resin (Allowing 50% for expansion) Fittings Working Pressure (Max) Min Temp Max Temp
0613 6" 13" 4.6 litres 2.30 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
0618 6" 18" 6.9 litres 3.45 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
0713 7" 13" 6.3 litres 3.15 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
0717 7" 17" 8.3 litres 4.15 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
0730 7" 30" 16.2 litres 8.1 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
0735 7" 35" 19.0 litres 9.5 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
0817 8" 17" 11.0 litres 5.5 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
0818 8" 18" 11.4 litres 5.7 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
0822 8" 22" 15.4 litres 7.7 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
0830 8" 30" 21.4 litres 10.7 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
0835 8" 35" 24.8 litres 12.4 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
0844 8" 44" 32.2 litres 16.1 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
0935 9" 35" 32.0 litres 16.0 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
0942 9" 42" 38.0 litres 19.0 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
0948 9" 48" 44.0 litres 22.0 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
1017 10" 17" 16.8 litres 8.4 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
1019 10" 19" 19.1 litres 9.55 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
1030 10" 30" 32.4 litres 16.2 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
1035 10" 35" 38.8 litres 19.4 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
1044 10" 44" 50.0 litres 25.0 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
1054 10" 54" 63.0 litres 31.5 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
1248 12" 48" 80.0 litres 40.0 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
1252 12" 52" 88.0 litres 44.0 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
1344 13" 44" 85.0 litres 42.5 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
1354 13" 54" 105.0 litres 52.5 litres 3/4"BSP Female 10 Bar / 145 PSI 1 Celcius 50 Celcius
1465 14" 65" 143.0 litres 71.5 litres 1"BSP Female 8.6 Bar / 125 PSI 1 Celcius 45 Celcius
1665 16" 65" 199.0 litres 99.5 litres 1"BSP Female 8.6 Bar / 125 PSI 1 Celcius 45 Celcius
1865 18" 65" 250.0 litres 125.0 litres 1"BSP Female 8.6 Bar / 125 PSI 1 Celcius 45 Celcius
2160 21" 60" 310.0 litres 155.0 litres 1"BSP Female 8.6 Bar / 125 PSI 1 Celcius 45 Celcius
2469 24" 69" 450.0 litres 225.0 litres 1"BSP Female 8.6 Bar / 125 PSI 1 Celcius 45 Celcius

Thermax Tulsion T45-BD PDF DatasheetDownload Thermax Tulsion T45-BD PDF Datasheet

Thermax Tulsion T45-BD MSDS PDFDownload Thermax Tulsion T45-BD MSDS PDF

Thermax Tulsion T45-BD Introduction PDFDownload Thermax Tulsion T45-BD Introduction PDF

Thermax Tulsion T45-BD Biodiesel Applications PDFDownload Thermax Tulsion T45-BD Biodiesel Applications PDF

Thermax Tulsion T45-BD Water wash, or water-less wash PDFDownload Thermax Tulsion T45-BD MSDS Water wash, or water-less wash

Thermax Tulsion T45-BD Methanol, Metals, Monoglycrides PDFDownload Thermax Tulsion T45-BD Methanol, Metals, Monoglycerides PDF

Thermax Tulsion T45-BD Regeneration Instructions PDFDownload Thermax Tulsion T45-BD Regeneration Instructions PDF

Thermax Tulsion T45-BD Tips on Usage PDFDownload Thermax Tulsion T45-BD Tips on Usage PDF

Thermax Tulsion T45-BD FAQ PDFDownload Thermax Tulsion T45-BD FAQ PDF

Product Options:

0613 (£87.92)
0618 (£105.83)
0735 (£185.00)
0818 (£134.17)
0835 (£213.33)
0844 (£261.67)
0935 (£262.50)
1035 (£300.00)
1044 (£367.50)
1054 (£444.58)
1248 (£588.33)
1354 (£730.00)
1465 (£1,007.17)
1665 (£1,319.00)
1865 (£1,687.50)
2160 (£2,068.33)
2469 (£3,137.50)
O'Ring Grease (£3.29)
Spare - Distribution System (£27.08)
Spare - Head for 27mm Tube (£17.50)
Spare - Top Screen 27mm (£3.33)
Spare - Tube & Low Screen 27mm (£11.25)
Spare - Viton Top Seal (£2.92)

Product Code: IONH4
