Stem Thermostat

Stem Thermostat

Product Information

Stem-Type Immersion Tank Thermostat

A robust tank thermostat, popular for controlling oil heating apparatus during the production of bio diesel. Stem thermostats are better than surface mounted thermostats when used on polyethylene tanks, which do not conduct heat to the thermostat as well as the probe on a stem thermostat will.

Specification
Voltage 230vAC
Temp Range 10 to 90 Celcius
Switching Capacity 16 Amps @ 250V, 6Amps @ 400V
Contact Configuration SPDT
Switching Differential 6 Celcius Approx
Enclosure Rating IP40
Tank Fitting 1/2" BSP Male (1/2" Backnut required for drilled holes, or a 1/2" Essex Cylinder Flange)

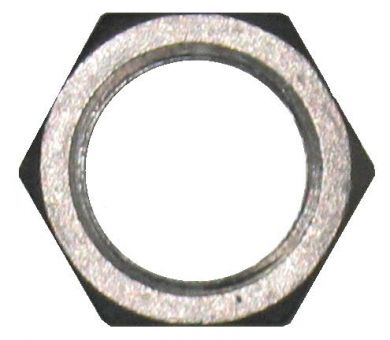

Nut, SS316, 1/2"BSP

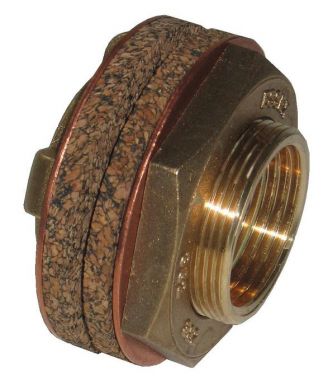

Essex Cylinder Flange, Brass, 1/2"BSP

Product Options:

(All prices include VAT)

Cylinder Flange, Brass, 1/2 In - (£14.00)
Nut, SS316, 1/2 Inch BSP - (£1.00)
Stem Thermostat - (£21.70)

Product Code: STE7175

Quantity: Add to Basket
