1/2 Inch Particulate Filters (Washable)

Product Information

1/2" Particulate Filters

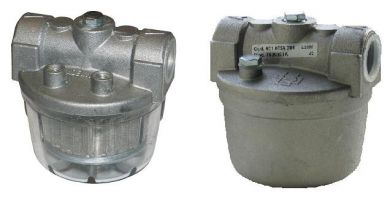

A general purpose, cast-aluminium headed filter for use with fuels and oils. The filter membrane is a 304 Stainless Steel mesh of 100 micron (0.1 mm) rating, supported in a rigid nylon frame, this can be removed and washed thoroughly time and time again

The filter bowl is available in cast aluminium, or clear polycarbonate for visual inspection of the filter condition

Compression fittings can be found HERE, Screwed fittings can be found HERE

Thread sealant for your choice of inlet fittings can be found in our Sealants section, we recommend either PTFE HERE, or Heldite HERE

Made in Italy

General Specification
Micron Rating of Stainless Filter	100
Dispensing Means	Gravity or Pumped
Inlet / Outlet Fittings	1/2" BSP Female
Diameter	80 mm
Depth	85 mm
Flow Max	Unknown

Manufacturers & Part Numbers
Type	Manufacturer	Manufacturers Part Number	Max Temperature	Max Pressure	Replacement Filter Link
Clear Bowl, Paper Element	Giuliani Anello	W-8ST-12/0015P	50°c	Unknown	HERE
Clear Bowl, Stainless Steel Element	Giuliani Anello	W-8ST-12/01	50°c	Unknown	HERE
Aluminium Bowl, Stainless Steel Element	FAG	Unknown	90°c	4 Bar	Not Available, Washable

For all filters with screw-on bowls we always recommend the use of Silicon O'Ring Grease to aid tightening of the bowl, preventing pinching & scuffing and thus prolonging the life of the O'Ring
