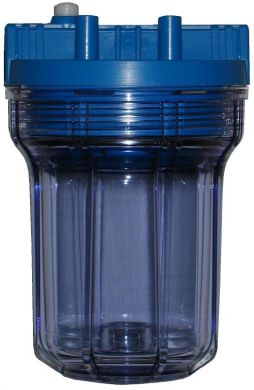

A superb quality Particulate filter, well suited to the filtration of substances such as vegetable oil / ethanol / methanol / water / foodstuffs / bio diesel etc. This filter has a clear Polycarbonate bowl so that the condition of the filter can be easily monitored. This filter comes with ONE disposable element, available in 1, 5, or 20 micron, or an 80 Micron washable element
The filter and element are commonly described as 5", though it is around 7" total length and accepts a 5" long element
SEAL MATERIAL - This filter is supplied as standard with a NITRILE (Also known as BUNA-N or NBR) Top seal, this is the same material supplied with all other manufacturers filters of this type as they are designed for Water. If you are using the filter with Vegetable Oil or Bio Diesel, the Nitrile seal will eventually swell and/or dissolve, it is therefore recommended that a spare seal in VITON is purchased to replace the original seal once it has become squishy. Viton seals are available in the product options below
PRESSURE FILTER - This is a pressure filter, it is designed to be fitted downstream of a pump of in a pressurised line, if it is fitted in a vacuum situation the red pressure-release button on the top will be drawn downward by the suction and will draw air into the system. It is possible for users to remove the button and replace with a bolt & nut if the filter is to be fitted in a vacuum situation
This Filter Housing accepts 5" Filter Elements, these are available Singly HERE
Nylon Hose Tails to suit 1/4", 3/16", 5/16", or 3/8" ID Hose can be found HERE
Optional Fitting Bracket Pictured Below;
For all filters with screw-on bowls we always recommend the use of Silicon O'Ring Grease to aid tightening of the bowl, preventing pinching & scuffing and thus prolonging the life of the O'Ring
(All prices include VAT)
01 Micron - (£20.00) 05 Micron - (£20.00) 20 Micron - (£20.00) 80 Micron Washable - (£23.00) Filter Mounting Bracket - (£4.80) Filter Spanner - (£4.50) Spare - Seal, VITON - (£2.50) Super Lube O'Ring Grease - (£3.95)
Product Code: 5I856
