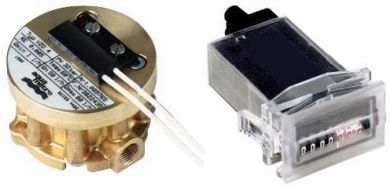

Aqua Metro Domestic Oil Meter, With Remote Totaliser

Product Information

Oil meters, with reed switch output to miniature remote totaliser with mechanical counter

Not approved for resale use

Suitable for Fuel Types;

Your Benefits

Space saving installation without requirement of straight inlet and outlet paths
Easy to install without restriction either horizontally, vertically, or inclined
High operational safety with vibration resistance

**Standard Specification**
	VZO 4	VZO 8
Connection Threads	1/8" BSP Female	1/4" BSP Female
Nominal Pressure	25 Bar	25 Bar
Minimum Temperature	-10 Celcius	-10 Celcius
Maximum Temperature	+60 Celcius	+60 Celcius
Maximum Flow Rate	80 lph	200 lph
Continuous Flow Rate	50 lph	135 lph
Minimum Flow Rate	1 lph	4 lph
Approximate Starting Flowrate	0.4 lph	1.6 lph
Maximum Permissible Error	±1% of reading	±1% of reading
Smallest Readable Amount	0.001 Litres	0.01 Litres
Registration Capacity	100,000 Litres	1,000,000 Litres
Safety Filter Mesh Size	125 Micron	150 Micron
Dirt Filter Mesh Size	80 Micron	100 Micron
Volume of Measuring Chamber	5 cm3	12.5cm3
Ingress Protection	IP50 as standard, IP54 is optional	IP50 as standard, IP54 is optional

**Remote Totaliser Specification**
Pulse Value (Input)	0.005 Litre
Minimum Readable Amount	0.005 Litre
Maximum Registration Capacity	10,000 Before Returning to Zero
Panel Cut Out Dimensions	27 mm x 14.4 mm
Installation Depth	56 mm
Voltage	230v50Hz

**Aqua Metro Flow Meter Model Numbers**
Display	Pulser Type	Litres Per Pulse	Pulses Per Litre	Part Number VZO4	Part Number VZO8
Local Display	Reed Switch	0.005	200	VZO 4 OEM-RE 0.005	VZO 8 OEM-RE 0.0125

**Aqua Metro Flow Meter Part Numbers, Correspondin gto Above**
Display	Pulser Type	Litres Per Pulse	Pulses Per Litre	Part Number VZO4	Part Number VZO8
Local Display	Reed Switch	0.005	200	89765	89771

(All prices include VAT)

VZ04 Remote Totaliser Kit - (£425.00)

Product Code: AQUO200

Quantity:
