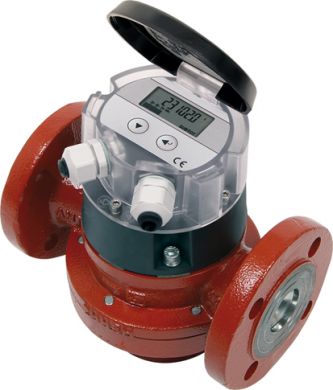

Aqua Metro VZF15-VZF50, Electronic Oil Flow Meters, PN25 Flanged

Fuel oil meters with flanged connection. Electronic counter with display of total volume, subtotal volume (can be reset) in m3, litres or US gallons. Flow rate per minute or hour and operation hours. Transmitter with 2 configurable signal outputs for volumetric pulses, flow rate (current or frequency) or limit switch

Not approved for resale use

Suitable for Fuel Types;

  • Heating Fuel, Extra Light / Light / Medium / Heavy (DN20 or above)
  • Kerosene
  • Naphtha
  • Diesel
  • Petrol
  • Lubricating Oils

Your Benefits

  • Reliable monitoring and flexible control of the system without additional transducers
  • Simplifying burner settings for optimum performance
  • Simple commissioning, maintenance-free
  • Space saving installation without requirement for straight inlet or outlet paths
  • Easy to install without restriction either horizontally or vertically
  • Maximum safety due to integral particle filter in meter inlet

Meters for heavy fuel oil should have a nominal diameter of DN 20 or larger

IMPORTANT - All meters must be fitted with a pre-filter of 100 Microns, Maximum. Ingress of particles over 100 microns may lead to wear and or jamming of the Rotary Piston, and will not be covered by Warranty

Specification
  VZF15 VZF20 VZF25 VZF40 VZF50
Nominal Diameter 15 mm / 1/2" 20 mm / 3/4" 25 mm / 1" 40 mm / 1.5" 50 mm / 2"
Installation Length 165 mm 165 mm 190 mm 300 mm 350 mm
Connection Threads 1/2" BSP 3/4" BSP 1" BSP 1.5" BSP 2" BSP
Nominal Pressure - Threaded 16 Bar 16 Bar 16 Bar 16 Bar 16 Bar
Nominal Pressure - Flanged 25 Bar 25 Bar 25 Bar 25 Bar 25 Bar
Maximum Temperature +130 or +180 Celcius +130 or +180 Celcius +130 or +180 Celcius +130 or +180 Celcius +130 or +180 Celcius
Maximum Flow Rate 600 lph 1,500 lph 3,000 lph 9,000 lph 30,000 lph
Continuous Flow Rate 400 lph 1,000 lph 2,000 lph 6,000 lph 20,000 lph
Minimum Flow Rate 10 lph 30 lph 75 lph 225 lph 750 lph
Approx Starting Flowrate 4 lph 12 lph 30 lph 90 lph 300 lph
Maximum Permissible Error ±1.0% of reading ±1.0% of reading ±1.0% of reading ±1.0% of reading ±1.0% of reading
Smallest Readable Amount 0.1 Litre 0.1 Litre 0.1 Litre 0.1 Litre 0.1 Litre
Registration Capacity 10,000,000 Litres 10,000,000 Litres 10,000,000 Litres 10,000,000 Litres 10,000,000 Litres
Flow Rate Display 1 Decimal Place 1 Decimal Place 1 Decimal Place 1 Decimal Place 1 Decimal Place
Safety Filter Mesh Size 400 Micron 400 Micron 400 Micron 800 Micron 800 Micron
Dirt Filter Mesh Size 250 Micron 400 Micron 400 Micron 600 Micron 600 Micron
Volume of Measuring Chamber 12 cm3 36 cm3 100 cm3 330 cm3 1,200 cm3
Ingress Protection IP65 IP65 IP65 IP65 IP65
Dimensions & Weight
  VZF15 VZF20 VZF25 VZF40 VZF50
Length 165 mm 165 mm 190 mm 300 mm 350 mm
Width 105 mm 105 mm 130 mm 210 mm 280 mm
Height 155 mm 164 mm 191 mm 243 mm 299 mm
Weight - PN25 Flanged 3.8 kg 4.5 kg 7.5 kg 20.3 kg 41.0 kg
Weight - PN40 Flanged 4.4 kg 5.5 kg 7.8 kg 20.5 kg 42.0 kg
Aqua Metro Model Numbers
Display Temp Max Pressure Max Pulser Type Litres Per Pulse Pulses Per Litre Part Number DN15 Part Number DN20 Part Number DN25 Part Number DN40 Part Number DN50
Local, Digital 130 Celcius 25 Bar - - - VZF 15 FL 130/25 VZF 20 FL 130/25 VZF 25 FL 130/25 VZF 40 FL 130/25 VZF 50 FL 130/25
Local, Digital 180 Celcius 25 Bar - - - - VZF 20 FL 180/25 VZF 25 FL 180/25 VZF 40 FL 180/25 VZF 50 FL 180/25
Aqua Metro Part Numbers, Corresponding to Above
Display Temp Max Pressure Max Pulser Type Litres Per Pulse Pulses Per Litre Part Number DN15 Part Number DN20 Part Number DN25 Part Number DN40 Part Number DN50
Local, Digital 130 Celcius 25 Bar - - - 93706 93709 93726 93731 93735
Local, Digital 180 Celcius 25 Bar - - - - 93710 93727 93732 93736
