GPI 01 Series Flow Meter, Aluminium

Product Information

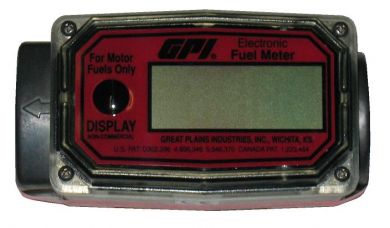

Great Plains Industries 01A52LM Flow Meter

This meter will display a batch (resettable) total, and a cumulative total (resettable by removal of the batteries) of the liquid passing through it, it will not show the ‘flow-rate’ in ‘litres per minute’ that is flowing through at a given time. See GPI A1 or G2 for flow-rate meters

This meter states on its display "For Motor Fuels Only" this is because it has been factory calibrated to measure Diesel, although it is chemically compatible with many other fluids of similar viscosity which it can also be used with, including Kerosene, and Bio Diesel up to B20

MEDIA MUST BE FREE OF DEBRIS, Please use a Filter or Y-Strainer prior to meter inlet

Optional Lexan Cover helps to protect from accidental damage

Approvals

European; CE - EMC Directive 89/336/EEC

Features & Performance
Display	Digital
Power Source	2x AAA Batteries
Minimum Flow Rate	10 lpm
Maximum Flow Rate	100 lpm
Maximum Viscosity	100 Centipoises
Accuracy	±5.0%
Temperature Range	-10° to +54° Celcius
Maximum Pressure	21 Bar
Factory Calibration	Yes
User Calibration	No
Inlet / Outlet Fittings	1" BSP Female Threaded
