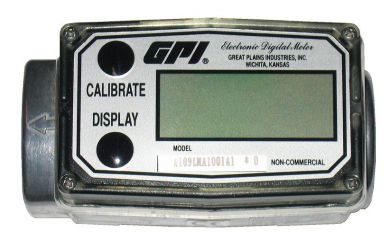

GPI Commercial Grade, ATEX Approved Flow Meters, Aluminium

GPI Commercial Grade, ATEX Approved Flow Meters, Aluminium

Product Information

Great Plains Industries, Commercial Grade Flow Meters

Superb quality turbine meters, for use with any thin viscosity liquids which are not chemically agressive to the materials from which ;the components are made

Displays Flowrate, 2 Resettable Totals, and 1 Non-Resettable Cumulative Total

Optional Lexan Cover helps to protect from accidental damage

BSP female threaded inlet / outlet

Approvals

  • USA; FM - Intrinsically safe for class I,II,III Division 1, Group ABCDEFG. Non-incendive for class I,II,III, Division 2, Group ADCDFG
  • European; EMC Directive 89/336/EEC and 'EEx nL IIC T4 U' under ATEX Directive 84/9/EC Annex VIII II 3 G (Equipment Group 2 - Other Than Mines, Category 3 - For Zone 2, G - For Gases, Vapours and Mist. Ingress Protection per IEC 34-5, Rated IP55
Models Available & Performance
A109LMA025IA1 1" BSP 1 to 10 lpm Flow Rate Accuracy ±1.5% to ±5.0%
A109LMA100IA1 1" BSP 10 to 190 lpm Flow Rate Accuracy ±1.0% to ±1.5%
A109LMA200IA2 2" BSP 100 to 1000 lpm Flow Rate Accuracy ±1.0% to ±1.5%
Features & Operating Limits
Display Digital
Power Source 2x Special Lithium Batteries
Factory Calibration Yes
User Calibration Yes
Temperature Range -10 to +60 Celcius
Maximum Pressure 21 Bar / 304.5 PSI
Maximum Viscosity 100 Centipoises
Wetted Components
Housing Aluminium
Journal Bearings Ceramic
Shaft Tungsten Carbide
Rotor Nylon 6-6
Rings 316 Stainless Steel
Signal Generators (Ferrite) Ceramic Magnet

Download GPI Commercial Grade, ATEX Approved Flow Meters Aluminium, Sheet PDFDownload GPI Commercial Grade, ATEX Approved Flow Meters Aluminium, Sheet PDF

Download GPI Commercial Grade, ATEX Approved Flow Meters Aluminium, Liquid Viscosities PDFDownload GPI Commercial Grade, ATEX Approved Flow Meters Aluminium, Liquid Viscosities PDF

Download GPI Commercial Grade, ATEX Approved Flow Meters Aluminium, Manual Spec PDFDownload GPI Commercial Grade, ATEX Approved Flow Meters Aluminium, Manual PDF

Download GPI Commercial Grade, ATEX Approved Flow Meters Aluminium, Chemical Compatibility Guide PDFDownload GPI Commercial Grade, ATEX Approved Flow Meters Aluminium, Compatibility Guide PDF

Download GPI Commercial Grade, ATEX Approved Flow Meters Aluminium, Build Your Own A1 Meter PDFDownload GPI Commercial Grade, ATEX Approved Flow Meters Aluminium, Build Your Own A1 Meter PDF

Product Options:

(All prices include VAT)

A1 & G2 Lexan Cover - (£13.50)
A1 and G2 Series Battery Kit - (£33.00)
A109LMA025IA1 - (£370.00)
A109LMA100IA1 - (£360.00)
A109LMA200IA2 - (£798.00)
Remote Kit for 1/4 & 1 Inch - (£167.00)
Remote Kit for 2 Inch - (£167.00)

Product Code: FL003
