GPI FM300H Flow Meter

GPI FM300H Flow Meter

Product Information

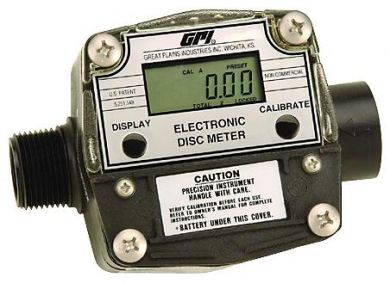

Great Plains Industries, FM300H Flow Meter

A durable and accurate viscous-disc meter, for use with any fluids which are not chemically agressive to the meters component materials.

This meter displays Flowrate, 1 Resettable Total, and 1 Non-Resettable Cumulative Total

Features & Performance
Display Digital
Power Source 2x Lithium Batteries
Minimum Flow Rate 7 lpm
Maximum Flow Rate 75 lpm
Accuracy ±2.5%
Factory Calibration Yes
User Calibration Yes
Inlet / Outlet Fittings 1" NPT Female In, 1" NPT Male Out
Maximum Pressure 3.4 bar / 49.3 PSI
Maximum Viscosity 500 cPs
Temperature Range Unknown
Wetted Components
Housing PBT Polyester
Nutating Disc PBT Polyester (Valox)
Wetted Gear Train Acetyl (Delrin)
Face Seal Viton

Download GPI FM300H Flow Meter, Spec PDFDownload FM300H Flow Meter, Spec PDF

Download GPI FM300H Flow Meter, Liquid Viscosities PDFDownload FM300H Flow Meter, Liquid Viscosities PDF

Download GPI FM300H Flow Meter, Chemical Compatibility Guide PDFDownload FM300H Flow Meter, Chemical Compatibility Guide PDF

Download GPI FM300H Flow Meter, Manaul PDFDownload FM300H Flow Meter, Manaul PDF

Product Options:

(All prices include VAT)

1 Inch NPT - (£265.00)

Product Code: GPI25

Quantity: Add to Basket
