Maide Oval Gear Meters

Maide Oval Gear Meters

Product Information

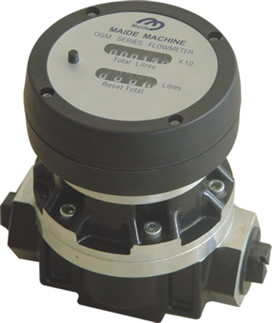

Maide Machine Co. Oval Gear Meters

Aluminium Bodied, Oval Gear Meters, for use with higher viscosity fluids that are not agressive to the meters component materials, supplied with local mechanical display, and BSP Female threaded inlet & outlet. An optional Pulse-Out module is also available

Approvals

  • EU; CE
Models Available & Performance
Model Number Fittings Flow Rate Accuracy Max Pressure Weight
OGM-A-25 1" BSP 20-120 lpm ±0.5% 3.4 Bar 2kg
OGM-A-40 1.5" BSP 25-250 lpm ±0.5% 1.8 Bar 5kg
OGM-A-50 2" BSP 30-300 lpm ±0.5% 1.8 Bar 5kg
Features & Performance
Display Mechanical
Power Source Not Required
Factory Calibration Yes
User Calibration
Temperature Range -25 to +55
Maximum Viscosity 1000 Centipoises
Wetted Components
Housing Aluminium
Shaft Stainless Steel
Gears PPS
O'Rings Viton
Signal Generators (Ferrite) Ceramic Magnet

Internal Gear Mechanism:

Optional Pulse Out Module:

OGM-A-50 Model:

Product Options:

(All prices include VAT)

OGM-A-25 - (£206.00)
OGM-A-40 - (£335.00)
OGM-A-50 - (£405.00)

Product Code: O5

Quantity: Add to Basket
