Piusi K200 Oval Gear Meters

Piusi K200 Oval Gear Meters are designed to meet a wide range of product delivery measuring requirements in non-resale applications. The oval gear measuring principle adopted offers high precision and low pressure losses

Pulser version also available, this can provide an output to other fuel management / monitoring systems

Standard non-pulser versions are supplied complete with digital display, showing;

Resettable batch total with floating decimal point between 0.001 to 999.99
Non resettable total, 8-digit to 99999999

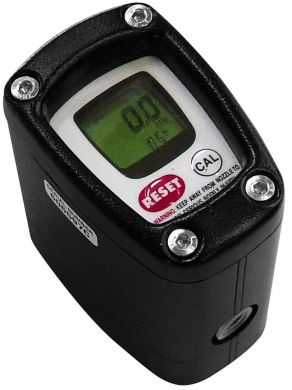

Photograph shows K200 non-pulser, other versions vary slightly in appearance

Technical Information
Model Number	K200 (F0043012A)	K200 Pulser (000452000)	K200 Pulser HP (000452030)
Display	Digital	None	None
Power Source	2x1.5vDC Batteries	NA	NA
Power Consumption	Unknown	NA	NA
Output Signal	None	Open Collector 50v, 1.2A Max	Open Collector 50v, 1.2A Max
Pulses Per Litre	None	10	10
Accuracy	±0.5%	±0.5%	±0.5%
User Calibration	Yes	Yes	Yes
Inlet / Outlet Fittings	1/4" BSP Female	1/4" BSP Female	1/8" BSP Female
Min Flowrate	0.1 lpm	0.1 lpm	0.1 lpm
Max Flowrate	2.5 lpm	2.5 lpm	2.5 lpm
Max Pressure	70 Bar / 1015 PSI	70 Bar / 1015 PSI	1000 Bar / 14200 PSI
Pressure Loss	0.5 Bar / 7.25 PSI	0.5 Bar / 7.25 PSI	Unknown
Temperature Range	Unknown	Unknown	Unknown
Weight	0.6 Kg	0.5 Kg	0.5 Kg
