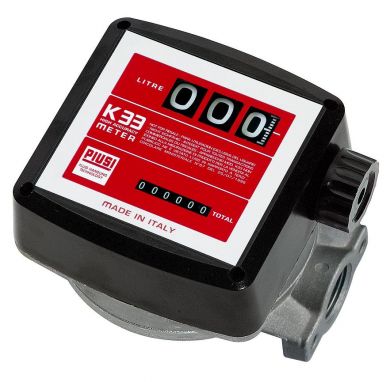

Piusi K33 Flow Meter 20-120lpm

Piusi K33 Flow Meter 20-120lpm

Product Information

Piusi K33 Flow Meter

A reliable dispensing meter, for use with Diesel, Bio Diesel up to B100, and Kerosene, with an option available for higher viscosity oils including Vegetable Oil, and Lubricating Oil

This meter displays 1 Resettable Total, and 1 Non-Resettable Cumulative Total

Features & Performance
Model Number K33 (000553000) K33 (000558000)
Display Mechanical, 3 Digit (2.1) Mechanical, 3 Digit (2.1)
Power Source None Required None Required
Minimum Flow Rate 20 lpm 20 lpm
Maximum Flow Rate 120 lpm 120 lpm
Accuracy ±1% (User Calibration) ±1% (User Calibration)
Factory Calibration Yes Yes
User Calibration Yes Yes
Inlet / Outlet Fittings 1" BSP Female 1" BSP Female
Maximum Operating Pressure 10 bar / 145 PSI 10 Bar / 145 PSI
Burst Pressure 30 Bar 30 Bar
Wetted Components
Housing Aluminium
Nutating Disc Acetyl (Delrin)
Shaft 316 Stainless Steel
Face Seal Viton
Calibration Screw Brass

Download Piusi K33 Flow Meter Catalogue Page PDFDownload Piusi K33 Flow Meter Catalogue Page PDF

Download Piusi K33 Flow Meter Manual PDFDownload Piusi K33 Flow Meter Manual PDF

Download Piusi K33 Flow Meter Spares PDFDownload Piusi K33 Flow Meter Spares PDF

Product Options:

(All prices include VAT)

000553000 - (£99.00)
000558000 - (£135.00)

Product Code: FL010

Quantity: Add to Basket
