Piusi K400, Oval Gear Meters

Product Information

Piusi K400 Oval Gear Meters

Piusi K400 Oval Gear Meters are designed to meet a wide range of product delivery measuring requirements in non-resale applications. The oval gear measuring principle adopted offers high precision and low pressure losses

Pulser version also available, this can provide an output to other fuel management / monitoring systems

Standard non-pulser versions are supplied complete with digital display, showing;

Resettable batch total with floating decimal point between 0.001 to 999.99
Non resettable total, 8-digit to 99999999

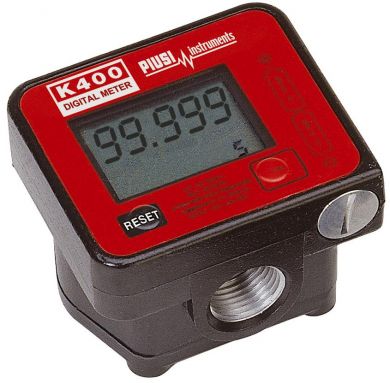

Photograph shows K400 non-pulser, other versions vary slightly in appearance

Technical Information
Model Number	K400 (F0047500A)	K400 Pulser (00044000A)
Display	Digital	None
Power Source	2x1.5vDC Batteries	NA
Power Consumption	Unknown	NA
Output Signal	None	Open Collector 50v, 1.2A Max
Pulses Per Litre	None	10
Accuracy	±0.5%	±0.5%
User Calibration	Yes	Yes
Inlet / Outlet Fittings	1/2" BSP Female	1/2" BSP Female
Min Flowrate	1 lpm	1 lpm
Max Flowrate	30 lpm	30 lpm
Max Pressure	70 Bar / 1015 PSI	70 Bar / 1015 PSI
Pressure Loss	0.5 Bar / 7.25 PSI	0.5 Bar / 7.25 PSI
Temperature Range	Unknown	Unknown
Weight	0.5 Kg	0.5 Kg
