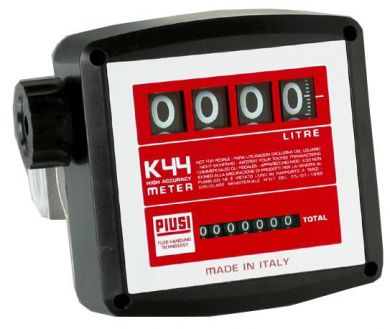

Piusi K44 Nutating Disc Flow Meters
For full product details refer to the below Piusi PDF downloads or Piusi.com
FLOW DIRECTIONS - There are essentially only 2 versions of K44, "Diesel" and "Oil", however, each of the 4 possible flow directions has a seperate part number. Due to only one model of each being stocked in the UK, the meters are supplied as standard with flow direction from left to right (looking at the meter from the front) - this means if you want a "Diesel" version you will get 000563000, and if you want an "Oil" version you will get 000563020, if you wish to change the orientation to either of the other 3 possibilities, then this is simply done by removing the black cover, unscrewing and rotating the counter assembly and then replacing the black cover.
A pulse-out version is also available which has the same locally mounted mechanical display, but also a 10PPL reed switch pulser
This meter displays 1 Resettable Total, and 1 Non-Resettable Cumulative Total
Features & Performance| Model Number | K44 Diesel (Example 000563000) | K44 Oil & Rapeseed Oil (Example 000563020) | K44 Diesel Pulser (Example 00056500A) |
| Display | Mechanical, 4 Digit (3.1) | Mechanical, 4 Digit (3.1) | Mechanical, 4 Digit (3.1) |
| Power Source | None Required | None Required | None Required |
| Minimum Flow Rate | 20 lpm | 20 lpm | 20 lpm |
| Maximum Flow Rate | 120 lpm | 120 lpm | 120 lpm |
| Accuracy | ±1% (User Calibration) | ±1% (User Calibration) | ±1% (User Calibration) |
| Pulse Out | None | None | 10 PPL |
| Factory Calibration | Yes | Yes | Yes |
| User Calibration | Yes | Yes | Yes |
| Inlet / Outlet Fittings | 1" BSP Female | 1" BSP Female | 1" BSP Female |
| Maximum Operating Pressure | 3.5 Bar | 3.5 Bar | 3.5 Bar |
| Burst Pressure | 10 Bar | 10 Bar | 10 Bar |
Flow Directions| Part Number - Diesel/Biodiesel | Part Number - Oil | Description | Flow Direction |
| 000560000 | 000560160 | K44 Version A | Right to Left |
| 000561000 | 000561020 | K44 Version B | Bottom to Top |
| 000562000 | 000562020 | K44 Version C | Top to Bottom |
| 000563000 | 000563020 | K44 Version D | Left to Right |
| 000710000 | - | K44 Version A USGal/NPT | Right to Left |
| 000563080 | - | K44 Version D, USGal/NPT | Left to Right |
| 00056500A | - | K44 Pulser | Left to Right |
Download Piusi K44 Fuel Flow Meter Catalogue Page PDF
Download Piusi K44 Oil Flow Meter Catalogue Page PDF
Download Piusi K44 Flow Meter Manual PDF
Download Piusi K44 Flow Meter Spares PDF
Download Piusi K44 Pulse Meter Manual PDF
Download Piusi K44 Pulse Meter Spares PDF
