Piusi K600, Oval Gear Meters

Piusi K600, Oval Gear Meters

Product Information

Piusi K600 Oval Gear Meters

Piusi K600 Oval Gear Meters are designed to meet a wide range of product delivery measuring requirements in non resale applications. The oval gear measuring principle adopted offers high precision and low pressure losses

Pulser versions are also available, these can provide an output to other fuel management / monitoring system

standard non-pulser versions are supplied complete with battery powered digital display, showing;

  • Flow Rate in litres-per-minute
  • Resettable batch total with floating decimal point between 0.001 to 999.99
  • Non resettable total, 8-digit to 99999999

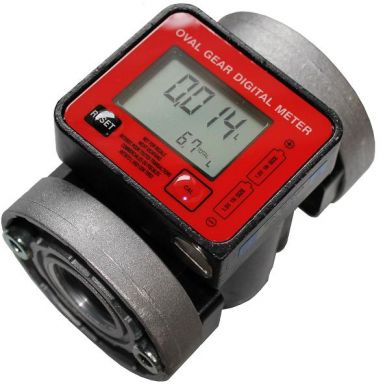

Photograph shows K600/4, other versions vary slightly in appearance

Technical Information - Local Display Versions
Model Number K600/3 Oil (F00496A20) K600/3 Diesel (F00496A00) K600/4 Diesel (00049700A)
Display Digital Digital Digital
Power Source 2x 1.5vDC Batteries 2x 1.5vDC Batteries 2x 1.5vDC Batteries
Power Consumption Unknown Unknown Unknown
Output Signal None None None
Pulses Per Litre None None None
Accuracy ±0.5% ±0.5% ±0.5%
User Calibration Yes Yes Yes
Inlet / Outlet Fittings 3/4" BSP Female 1" BSP Female 1.5" BSP Female
Min Flowrate 6 lpm 10 lpm 15 lpm
Max Flowrate 60 lpm 100 lpm 150 lpm
Max Pressure 70 Bar / 1015 PSI 30 Bar / 435 PSI 20 Bar / 290 PSI
Pressure Loss 0.5 Bar / 7.25 PSI 0.5 Bar / 7.25 PSI 0.5 Bar / 7.25 PSI
Temperature Range Unknown Unknown Unknown
Weight 1.6 Kg 1.6 Kg 3.2 Kg
Technical Information - Pulser Versions
Model Number K600/3 Oil (F00472A20) K600/3 Diesel (F00472A00) K600/4 Diesel (000473000)
Display None None None
Power Source NA NA NA
Power Consumption NA NA NA
Output Signal Reed Switch, S/C, 28vAC/DC 100mA Reed Switch, S/C, 28vAC/DC 100mA Reed Switch, S/C, 28vAC/DC 100mA
Pulses Per Litre 33 35 26
Accuracy +/- 0.5% +/- 0.5% +/- 0.5%
User Calibration Yes Yes Yes
Inlet / Outlet Fittings 3/4" BSP Female 1" BSP Female 1.5" BSP Female
Min Flowrate 6 lpm 10 lpm 15 lpm
Max Flowrate 60 lpm 100 lpm 150 lpm
Max Pressure 70 Bar / 1015 PSI 30 Bar / 435 PSI 20 Bar / 290 PSI
Pressure Loss 0.5 Bar / 7.25 PSI 0.5 Bar / 7.25 PSI 0.5 Bar / 7.25 PSI
Temperature Range Unknown Unknown Unknown
Weight 2 Kg 2.6 Kg 3.2 Kg
Wetted Components
Housing Anodised Aluminium
Seals Viton
Gears Acetyl Resin (Delrin)
Gear Shafts Unknown

SPECIAL ORDER ITEM - If urgent please email before purchasing

Download Piusi K600, Oval Gear Meters, Catalogue Page PDFDownload Piusi K600, Oval Gear Meters, Catalogue Page PDF

Download Piusi K600 Diesel, Oval Gear Meter User Manual PDFDownload Piusi K600 Diesel, Oval Gear Meter, User Manual PDF

Download Piusi K600 Diesel, Oval Gear Meter, Spares PDFDownload Piusi K600 Diesel, Oval Gear Meter, Spares PDF

Download Piusi K600 Oil, Oval Gear Meter User Manual PDFDownload Piusi K600 Oil, Oval Gear Meter, User Manual PDF

Download Piusi K600 Oil, Oval Gear Meter Spares PDFDownload Piusi K600 Oil, Oval Gear Meter, Spares PDF

Download Piusi K600 Diesel Pulse Oval Gear Meter, User Manual PDFDownload Piusi K600 Diesel, Oval Gear Pulse Meter, User Manual PDF

Download Piusi K600 Diesel Pulse Oval Gear Meter, Spares PDFDownload Piusi K600 Diesel, Oval Gear Pulse Meter, Spares PDF

Download Piusi K600 Oil Pulse Oval Gear Meter, User Manual PDFDownload Piusi K600 Oil, Oval Gear Pulse Meter, User Manual PDF

Download Piusi K600 Oil, Pulse Oval Gear Meter Spares PDFDownload Piusi K600 Oil, Oval Gear Pulse Meter, Spares PDF

Download Piusi K600 Diesel 1.5Download Piusi K600 Diesel, 1.5" BSP Oval Gear Meter, User Manual PDF

Download Piusi K600 Diesel 1.5Download Piusi K600 Diesel, 1.5" BSP Oval Gear Meter, Spares PDF

Download Piusi K600 Diesel 1.5Download Piusi K600 Diesel 1.5" BSP, Oval Gear Pulse Meter, User Manual PDF

Download Piusi K600 Diesel 1.5Download Piusi K600 Diesel 1.5" BSP, Oval Gear Pulse Meter, Spares PDF

Product Options:

(All prices include VAT)

Piusi K600/3 Diesel - (£259.00)
Piusi K600/3 Diesel Pls - (£207.00)
Piusi K600/3 Oil - (£279.00)
Piusi K600/3 Oil Pls - (£232.00)
Piusi K600/4 Diesel - (£362.00)
Piusi K600/4 Diesel Pls - (£316.00)

Product Code: PIUF5
