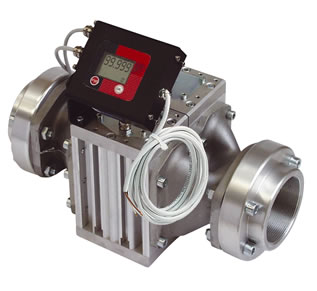

Piusi K900, 3 Inch, Oval Gear Meter

Product Information

Piusi K900 Oval Gear Meter

Piusi K900 Oval Gear Meters are designed to meet a wide range of product delivery measuring requirements in non-resale applications. The oval gear measuring principle adopted offers high precision and low pressure losses

Pulser version also available, this has a remotely mounted display and can provide an output to other fuel management / monitoring systems

Supplied complete with digital display, showing;

Flow Rate in litres-per-minute
Resettable batch total with floating decimal point between 0.001 to 999.99
Non resettable total, 8-digit to 99999999

Technical Information
Model Number	K900 (000499000)	K900 Pulser (000499020)
Display	Digital	Digital
Power Source	4-12vDC External Supply	4-12vDC External Supply
Power Consumption	Unknown	1.2A Max
Output Signal	None	Open Collector 50v, 1.2A Max
Pulses Per Litre	None	10
Accuracy	±0.5%	±0.5%
User Calibration	Yes	Yes
Inlet / Outlet Fittings	3" BSP Female	3" BSP Female
Min Flowrate	50 lpm	50 lpm
Max Flowrate	500 lpm	500 lpm
Max Pressure	20 Bar / 290 PSI	20 Bar / 290 PSI
Pressure Loss	0.5 Bar / 7.25 PSI	0.5 Bar / 7.25 PSI
Temperature Range	Unknown	Unknown
Weight	12 Kg	12 Kg
