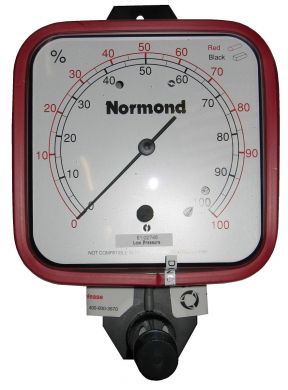

Normond E Series, Hydrostatic Contents Gauge

Product Information

The Normond E Series gauge by Gilbarco Veeder Root is extremely popular for commercial sites where reliability and accuracy is essential

Featuring a hand-pump mechanism the gauges do not require any power, and are therefore ideally suited to hazardous environments
Constructed from robust and weather-resistant ABS Plastic, these gauges can be relied upon to consistently perform for many years and require little maintenance
The E Series gauge displays the tanks contents as a percentage of the total capacity, and is suitable for tanks up to 9.2m in height
Supplied with 10m of black PVC Connection Tube and brass Balance Chamber
Suitable only for tanks that are permanently atmospherically vented
For all non-food liquids compatible with PVC, and brass

Specification
Depth Options Available	0.8-2.2m, 1.5-4.1m, and 3.1-8.8m
Accuracy	TBC
Scale	Percentage of capacity
Size	170 mm x 170 mm
Min Tank Entry	13 mm
Max Temperature	38 Celcius (With standard BC)
Max Viscosity (Redwood No.1 @ 16 Celcius)	Dependent upon BC used
Tube Length Supplied	10 Metres, extra available upon request and at additional cost

*SPECIAL ORDER ITEM, LEAD TIME 3-4 WORKING WEEKS EXW*

(All prices include VAT)

E Series 0.8m-2.2m - (£350.00)
E Series 1.5m-4.1m - (£350.00)
E Series 3.1m-8.8m - (£350.00)

Product Code: CG004
