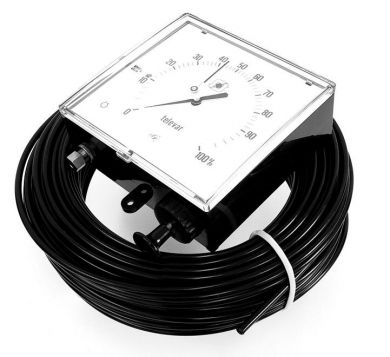

Televar, Hydrostatic Contents Gauges

Product Information

The Televar gauge is extremely popular for commercial and domestic sites where reliability and accuracy is essential

Featuring a hand-pump mechanism the gauges do not require any power, and are therefore ideally suited to hazardous environments
Constructed from High-Impact Plastic but without Ingress-Protection, these gauges should always be fitted inside a weather-proof housing
With versions available for vertical, or horizontal tanks, each displays the tanks contents as a percentage of the total capacity, and is suitable for tanks from 0.9 m up to 3.0 m in height
Supplied with 50m of black Polyethylene Connection Tube, and a GRP weighted Nylon Balance Chamber with 3m of NBR suspension tube
Suitable only for tanks that are permanently atmospherically vented
For all low-viscosity Fuel and Oil products which are compatible with GRP, NBR and Nylon. Bespoke Balance Chambers for agressive liquids can also be produced to your requirements.

Specification
Min Tank Depth	0.9 metres
Max Tank Depth	3.0 Metres
Accuracy	±2.0%
Scale	Percentage of capacity
Size	160 mm x 170 mm
Tank Fitting Adaptor	1" BSP Male Threaded
Max Temperature	Unknown
Max Viscosity (Redwood No.1 @ 16 Celcius)	Unknown
Tube Length Supplied	50 Metres

(All prices include VAT)

Horizontal Cylindrical Tanks - (£82.00)
Rectangular or Vertical Tanks - (£82.00)

Product Code: CG005

Quantity:
