Panel Mounted Oil Temperature Gauge, 52mm

Panel Mounted Oil Temperature Gauge, 52mm

Product Information

Panel Mounted Oil Temperature Gauges

These gauges are widely used as a replacement for OEM gauges, or as a secondary gauge on vehicles with heat exchange systems for Bio Fuels. The Temperature Gauge can be used to show the temperature of the flowing Vegetable Oil to make sure that the heat exchanger is working properly, this can help to avoid injector failure caused by the Vegetable Oil entering the injectors at too cold a temperature

It is also possible to run this gauge from mains power (110v or 230v AC), by using the 12vDC version of this gauge, and a 110-230vAC to 12vDCRegulated Desktop Transformer, pictured at the foot of this listing

Specification
Legend Text OIL
Scale 50-150 Celcius
Supply Voltage 12vDC or 24vDC - Select From Options Below

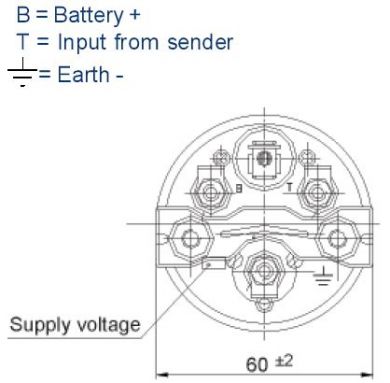

Terminal Connections M4x0.7 Studs & 6.3mm Spades
Accuracy ±5% of full scale @25 Celcius

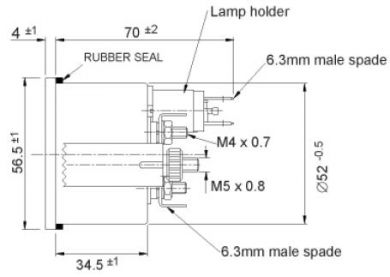

Panel Cut Out 52mm Diameter
Mounting Depth Required 80mm
Lens Material Glass
Sender Thread M14 Male
Sender Wiring Insulated Supply & Return (Not earthed through body)

110-230vAC to 12vDC 1.0A Regulated Desktop Transformer

Product Options:

(All prices include VAT)

12vDC - (£34.99)
230vAC to 12vDC 1A Transformer - (£17.50)
24vDC - (£34.99)

Product Code: PANC4

Quantity: Add to Basket
