Gilbarco / Normond E Series, Hydrostatic Contents Gauge
  • Click to enlarge

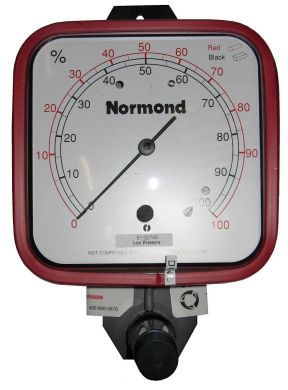

Gilbarco Veeder Root, Normond E-Series Hydrostatic Contents Gauge

The Normond E Series gauge by Gilbarco Veeder Root is extremely popular for commercial sites where reliability and accuracy is essential

  • Featuring a hand-pump mechanism the gauges do not require any power, and are therefore ideally suited to hazardous environments
  • Constructed from robust and weather-resistant ABS Plastic, these gauges can be relied upon to consistently perform for many years and require little maintenance
  • The E Series gauge displays the tanks contents as a percentage of the total capacity, and is suitable for tanks up to 9.0m in height
  • Supplied with 10m of black PVC Connection Tube and brass Balance Chamber
  • Suitable only for tanks that are permanently atmospherically vented
  • For all non-food liquids compatible with PVC, and brass
Specification
Depth Options Available0-2m (Low), 2-4.5m (Medium), and 4.5-9.0m (High)
AccuracyTBC
ScalePercentage of capacity
Size170 mm x 170 mm
Min Tank Entry13 mm
Max Temperature38 Celcius (With standard BC)
Max Viscosity (Redwood No.1 @ 16 Celcius)Dependent upon BC used
Tube Length Supplied10m, extra available upon request

*SPECIAL ORDER ITEM, LEAD TIME 3-4 WORKING WEEKS EXW*

Product Options

£256.25
