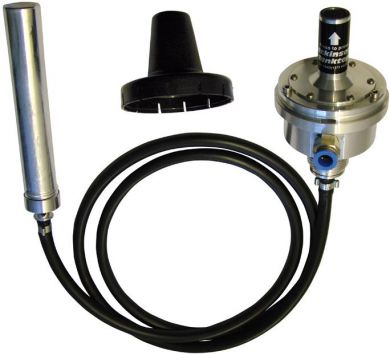

Atinson Tanktop, Top Offtake, Anti-Siphon System

Product Information

Atkinson Tanktop, Top Offtake, Anti-Siphon System For Heating Oil Tanks

Finally the end is in sight for environmentally threatening bottom off-take heating oil tanks, with the availability of the Atkinson Tanktop, the Worlds First comprehensive top-offtake system

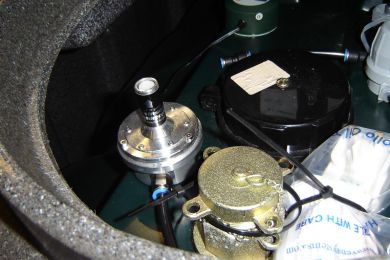

The most simple fitting of all tank equipment, a 1"BSP Bottom thread screws straight into the tank surface (or through the surface with a backnut on the inside), with the floating suction tube dropping through and floating in the oil inside the tank, this means the cleanest of the oil is always drawn off first, leaving the muck that has settled in the bottom of the oil tank. The Valve then terminates with a 10mm hydraulic adaptor, into which you simply plug your Copper pipe (For in-bund use only, for use on a single skin tank the fitting should be replaced with a brass Comperssion Fitting).

Diaphragm Anti-Siphon Valve, Pre Set @1.0 S.G +20mb-0mb (2m head)
Anti Spill Valve
Non Return Valve
Self Isolating
52 Micron Nylon Filter
Flexible Suction Tube
Priming Button
Aluminium Float
Viton Seals, Balls, & Diaphragms Throughout
Bio Fuel compatible
Waterproof
10mm Hydraulic Push Fit Adaptor
MADE IN ENGLAND!

Technical Specification
Maximum Negative Head	Subject to factory setting, for example 200 mb = 2 m Negative Head
Maximum Vacuum	-1 Bar / -14.5 PSI
Tank Fitting	1"BSP Parallel Male
Outlet Fitting	1/4" BSP Parallel Female
Height	105 mm
Diameter	82 mm
Suitable For	ASTM D3699 1-K Kerosene or ASTM D396 No.1 or No.2 Fuel Oil
