Oilybits, 316 Stainless, and Painted Steel, Spring Rewind Hose Reels

Oilybits, 316 Stainless, and Painted Steel, Spring Rewind Hose Reels

Product Information

Stainless, and Painted Steel Hose Reels, with Spring Rewind

Excellent quality, Stainless Steel, and Painted Steel Hose Reels with Spring Rewind.

316 Stainless Steel reels are highly resistant to corrosion and are popular for marine liquid transfer, such as Refuelling, or for Water, or for hosing down of clean areas

Can be fitted to the ground or to a wall, and an optional swivelling bracket enables the reel to point toward the direction that the user is retracting the hose, making it easier to use

The hose roller arm can be rotated through 45 degrees to adjust the direction in which the hose peels off

Hose NOT Included, please select suitable hose from our hose section, or email us for advice on what hose would suit your application, we sell an excellent Non-Marking refuelling hose for marine application, or a Polyeurethane lined hose for resistance to Water, Chemicals, or Bio Diesel products

Specification
Model Inlet Fitting Outlet Fitting Max Capacity of 3/4"ID Hose Max Capacity of 1"ID Hose Reel Material Weight Suits Swivelling Wall Bracket
AV 1200 1" BSP Male 1" BSP Male 13 m 8 m 304, 303 Stainless 21 kg ST 20
AV 1300 1" BSP Male 1" BSP Male 18 m 15 m 304, 303 Stainless 24 kg ST 22
AV 3501 1" BSP Male 1" BSP Male 20 m Not Suitable 304, 303 Stainless 31 kg ST 30
AV 6001 1" BSP Male 1" BSP Male 40 m 30 m 304, 303 Stainless 51 kg Too Heavy for Bracket
AV 1200 FE 1" BSP Male 1" BSP Male 13 m 8 m Painted (Grey) Mild Steel <21 kg ST 20 FE
AV 1300 FE 1" BSP Male 1" BSP Male 18 m 15 m Painted (Grey) Mild Steel <24 kg ST 22 FE
AV 3501 FE 1" BSP Male 1" BSP Male 20 m Not Suitable Painted (Grey) Mild Steel <31 kg ST 30 FE
AV 6001 FE 1" BSP Male 1" BSP Male 40 m 30 m Painted (Grey) Mild Steel <51 kg Too Heavy for Bracket

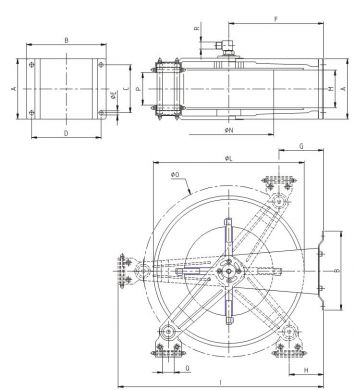

Dimensions
Part Number A B C D E F G H I L M N O P Q
AV 1200 & FE 220 232 180 204 13 262 50 50 560 430 140 260 460 120 40
AV 1300 & FE 445 233 415 205 13 285 110 100 580 440 287 260 470 280 40
AV 3501 & FE 310 295 280 265 13 315 120 107 700 540 135 310 580 105 35
AV 6001 & FE 590 345 560 312 13 315 120 107 700 540 390 320 580 105 35

Product Options:

(All prices include VAT)

AV 1200 - (£488.80)
AV 1200 FE - (£315.00)
AV 1300 - (£710.00)
AV 1300 FE - (£458.00)
AV 3501 - (£682.00)
AV 3501 FE - (£508.00)
AV 6001 - (£1297.00)
AV 6001 FE - (£1006.00)
ST 20 - (£68.00)
ST 20 FE - (£45.00)
ST 22 - (£135.00)
ST 22 FE - (£89.50)
ST 30 - (£135.00)
ST 30 FE - (£89.50)

Product Code: STAC4

Quantity: Add to Basket
