Product Information

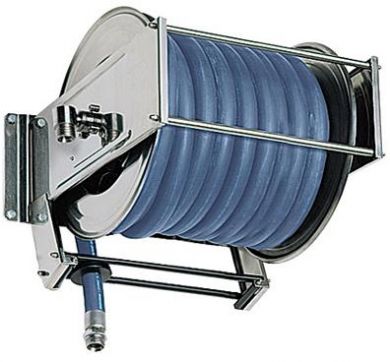

High Capacity Stainless Steel 316 & Painted Steel Hose Reels, with Spring Rewind

Excellent quality, Hose Reels with Spring Rewind

316 Stainless Steel reels are highly resistant to corrosion and are popular for marine liquid transfer, such as Refuelling, or for Water, or for hosing down of clean areas

Can be fitted to the ground or directly to a wall, hose roller bracket is fixed into position, and the reel features 2 cross bars to stengthen the reel holster

Hose NOT Included, please select suitable hose from our hose section, or email us for advice on what hose would suit your application, we sell an excellent Non-Marking refuelling hose for marine application, or a Polyeurethane lined hose for resistance to Water, Chemicals, or Bio Diesel products

Specification
Model Inlet Fitting Outlet Fitting Max Capacity of 3/4"ID Hose Max Capacity of 1"ID Hose Reel Material Weight Suits Swivelling Wall Bracket
AV 5000 1" BSP Male 1" BSP Male 30 m 25 m 304, 303 Stainless 40 kg Too Heavy for Wall Bracket
AV 5000 FE 1" BSP Male 1" BSP Male 30 m 25 m Painted (Grey) Mild Steel <40 kg Too Heavy for Wall Bracket

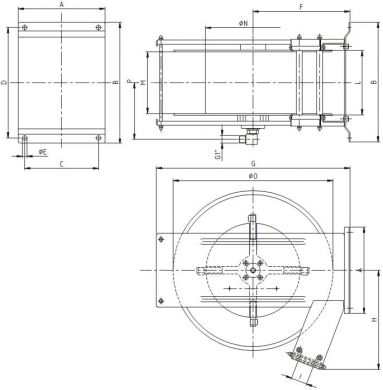

Dimensions
Part Number A B C D E F G H I L M N O P Q
AV 5000 & FE 290 500 262 470 13 270 533 520 45 360 385 260 430 270 -

Product Options:

(All prices include VAT)

AV 5000 - (£984.00)
AV 5000 FE - (£760.00)

Product Code: STAL169

Quantity: Add to Basket
