ZVA Slimline, ATEX Approved Automatic Nozzles

ZVA Slimline, ATEX Approved Automatic Nozzles

Product Information

ZVA Slimline, Automatic Dispensing Nozzles

Nozzles supplied will be ZVA 'Slimline 2', the replacement for the original ZVA Slimline, the only difference between the two models being the hand grip pattern. Actual picture shown above is of the ZVA Slimline 2

An automatic shut-off nozzle can only be used on pumped dispensing systems, they will not work on gravity-fed dispensing systems

Approved for use in ATEX areas - SIRA Certificate Number 03ATEX9487U, Category - Ex II 1 G

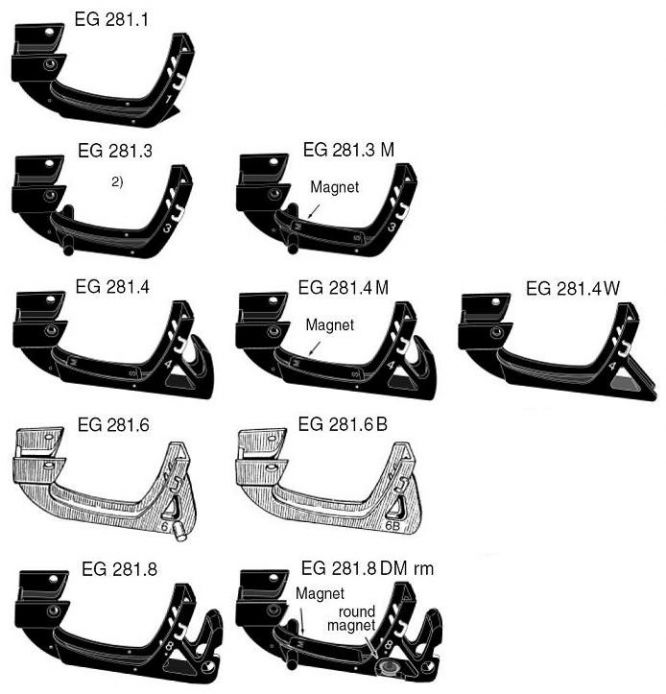

There are various options available for ZVA Slimline Nozzles, these include a choice of Guard, and Spout patterns. Most of the time a Standard Guard (Guard No 4) and Spout (Spout Length 185 mm) are used, however for existing installations where the dispensing pump system has been designed to accept a specific (or older) style of Guard or Spout, then the correct style can be selected to ensure compatibility with the Nozzle Holster

PLEASE NOTE THAT DUE TO NOZZLES BEING MADE TO ORDER, THERE IS A 30.00 GBP CHARGE FOR NOZZLES ORDERED INCORRECTLY THAT NEED TO BE RE-WORKED

Guard Style Hose Connection Spout Length Spout for Fuel Type Boot Colour Part Number
EG281.1 1"BSP Male 160 mm (Stubby) Diesel Black ZVA 1
EG281.1 1"BSP Male 160 mm (Stubby) Petrol Green ZVA 1 R
EG281.1 1"BSP Male 185 mm Diesel Black ZVA 1.0
EG281.1 1"BSP Male 185 mm Petrol Green ZVA 1.0 R

-

-

-

-

-

-
EG281.3 1"BSP Male 160 mm (Stubby) Diesel Black ZVA 3
EG281.3 1"BSP Male 160 mm (Stubby) Petrol Green ZVA 3 R
EG281.3 1"BSP Male 185 mm Diesel Black ZVA 3.0
EG281.3 1"BSP Male 185 mm Petrol Green ZVA 3.0 R
EG281.3 1"BSP Female 185 mm Diesel Black ZVA 3.1
EG281.3 1"BSP Female 185 mm Petrol Green ZVA 3.1 R
EG281.3 3/4"BSP Female 185 mm Diesel Black ZVA 3.4
EG281.3 3/4"BSP Female 185 mm Petrol Green ZVA 3.4 R

-

-

-

-

-

-
EG281.4 1"BSP Male 160 mm (Stubby) Diesel Black ZVA 4
EG281.4 1"BSP Male 185 mm Diesel Black ZVA 4.0
EG281.4 1"BSP Male 185 mm Petrol Green ZVA 4.0 R
EG281.4 1"BSP Female 185 mm Diesel Black ZVA 4.1
EG281.4 1"BSP Female 185 mm Petrol Green ZVA 4.1 R
EG281.4 3/4"BSP Female 185 mm Diesel Black ZVA 4.4
EG281.4 3/4"BSP Female 185 mm Petrol Green ZVA 4.4 R

-

-

-

-

-

-
EG281.8 1"BSP Male 185 mm Diesel Black ZVA 8.0
EG281.8 1"BSP Male 185 mm Petrol Green ZVA 8.0 R
EG281.8 1"BSP Female 185 mm Diesel Black ZVA 8.1
EG281.8 1"BSP Female 185 mm Petrol Green ZVA 8.1 R
EG281.8 3/4"BSP Female 185 mm Diesel Black ZVA 8.4
EG281.8 3/4"BSP Female 185 mm Petrol Green ZVA 8.4 R
EG281.8 3/4"BSP Male 185 mm Diesel Black ZVA 8.7
EG281.8 3/4"BSP Male 185 mm Petrol Green ZVA 8.7 R

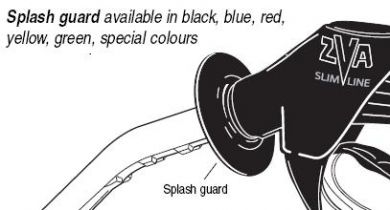

Splash Guards Part Number
Splash Guard - GREEN (Petrol Only) ZVA SGG
Splash Guard - BLACK (Diesel Only) ZVA SGB
Splash Guard - RED (Diesel Only) ZVA SGR
Splash Guard - YELLOW (Diesel Only) ZVA SGY
Alternative Colour Boots for Diesel Nozzles Part Number
Boot - RED ZVA EK 144 R
Boot - YELLOW ZVA EK 144 Y
Boot - BLUE ZVA EK 144 BU
Optional Extras Available by Request Only Part Number

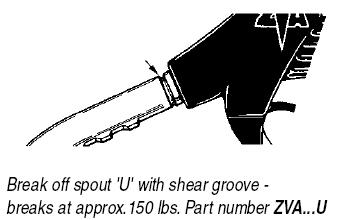

Safety Break Spout SBS

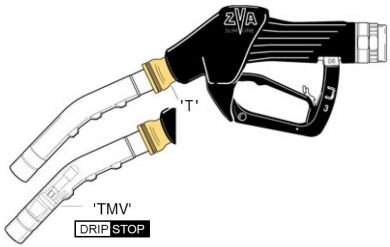

'Drip Stop' Spout DSS


General Specification
Inlet Variable, Consult Chart
Spout Outside Diameter Diesel DN 19 - 25 mm, Petrol DN 16 - 21 mm
Trigger Catch Yes, 3 Position, Pin Removable for Forecourt Use
Swivel Included Yes, Standard (Break Swivel Optional Extra)
Min Flow rate 10 lpm
Max Flow rate Diesel DN 19 - 80 lpm, Petrol DN 16 - 50 lpm
Min Pressure 7 PSI / 0.5 Bar
Max Pressure 58 PSI / 4.0 Bar
Wetted Components
Body Aluminium
Seals Viton
Spring Stainless Steel
Main Stem Brass
Valve Seat Acetyl Resin (Delrin)
Diaphragm Polyeurethane/NBR Compound
Swivel Stainless Steel

Product Options:

(All prices include VAT)

ZVA 1 - (£160.00)
ZVA 1 R - (£167.00)
ZVA 1.0 - (£160.00)
ZVA 1.0 R - (£167.00)
ZVA 3 - (£160.00)
ZVA 3 R - (£167.00)
ZVA 3.0 - (£160.00)
ZVA 3.0 R - (£167.00)
ZVA 3.1 - (£160.00)
ZVA 3.1 R - (£167.00)
ZVA 3.4 - (£160.00)
ZVA 3.4 R - (£167.00)
ZVA 4 - (£160.00)
ZVA 4.0 - (£160.00)
ZVA 4.0 R - (£167.00)
ZVA 4.1 - (£160.00)
ZVA 4.1 R - (£167.00)
ZVA 4.4 - (£160.00)
ZVA 4.4 R - (£167.00)
ZVA 8.0 - (£160.00)
ZVA 8.0 R - (£167.00)
ZVA 8.1 - (£160.00)
ZVA 8.1 R - (£167.00)
ZVA 8.4 - (£160.00)
ZVA 8.4 R - (£167.00)
ZVA 8.7 - (£160.00)
ZVA 8.7 R - (£167.00)
ZVA DSS - (£55.00)
ZVA EK 144 BU - (£4.50)
ZVA EK 144 R - (£4.50)
ZVA EK 144 Y - (£4.50)
ZVA SBS - (£5.50)
ZVA SGB - (£4.75)
ZVA SGG - (£4.75)
ZVA SGR - (£4.75)
ZVA SGY - (£4.75)

Product Code: NO011
