Piston Driven Air Pump

Product Information

Piston Operated, Continuous Duty Air Pump

These excellent quality, piston driven air pumps come in a range of sizes, and are suitable for heavy, continuous duty at air flow rates up to 140 litres per minute @ 0 Bar

We have trialled these pumps on our biodiesel production systems and found that model PP388D is the most suitable for tanks up to 120 Litres capacity, and model PP009E is best suited for tanks from 120 up to 220 Litres capacity

Pumps come complete with 1.5m of cable, 3 pin fused U.K. plug, brass pump connecting tail, 6" of PVC hose (size dependent on model), and 3x Jubilee Clips

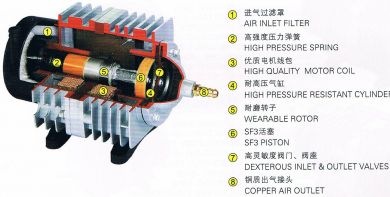

The case of the pump is made of high-quality ZL102 aluminium alloy with streamline design, making heat-dissipation more effective, this enables the pump to run continuously without having to worry abnout it overheating and stopping during a process

The piston and cylinder adopt Sf3, a new type of hard wearing material. This allows a low power consumption relative to the large air output and pressure achieved

Non-oil lubricatiing design means the air is oil free and pure

Mounted on anti-vibration rubber legs to mitigate noise output. Compared to widely used "compressors" these pumps can almost be described as silent running - they really are so much quieter, and consume less energy as the air is not needlessly compressed to high pressures

Performance
Model	Air Flow, LPM	Voltage	Wattage	Maximum Pressure	Noise dB	Weight	Size (mm)
PP 208	35	240v50Hz	16	0.015 Mpa (150cm head of water)	<50	0.9 Kg	142 x 80 x 78
PP 308	45	240v50Hz	20	0.018 Mpa (180cm head of water)	<60	1.2 Kg	159 x 90 x 95
PP 328	60	240v50Hz	60	0.030 Mpa (300cm head of water)	<60	2.80 Kg	199 x 108 x 133
PP 388D	80	240v50Hz	80	0.030 Mpa (300cm head of water)	<60	3.30 Kg	232 x 120 x 148
PP 009E	140	240v50Hz	120	0.035 Mpa (350cm head of water)	<60	5.10 Kg	283 x 147 x 173
PP 300A	250	240v50Hz	190	0.040 Mpa (400cm head of water)	<60	6.40 Kg	307 x 156 x 189
PP 500	420	240v50Hz	200	0.045 Mpa (450cm head of water)	<60	8.6 Kg	337 x 171 x 202
