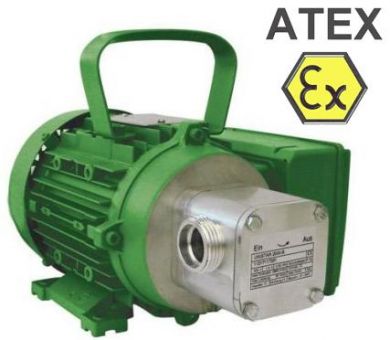

ATEX Flexible Impeller Pumps, Motor Driven (Aluminium)

Product Information

ATEX Approved Flexible Impeller Pumps, Motor Driven

With Cat 2 ATEX Approved motor, for use in Zone 1 Explosive Atmospheres. Please note it is only the motor which is ATEX approved, not the pump itself, therefore they should only be used for pumping of liquids with a flashpoint of 55°+

Featuring an Aluminium impeller case, and Aluminium end closure, these pumps are designed for liquids which are not chemically agressive to Aluminium, and are non-abrasive. Also available with Stainless Steel impellor case with Aluminium end closure for liquids that are mildly abrasive, or a fully Stainless impeller housing for liquids corrosive to Aluminium, and Foodstuffs

These Top Quality, extremely durable Flexible-Impeller pumps are excellent for pumping viscous liquids which have a particulate content, for example Waste Engine Oil, Waste Cutting Oil, Waste Lubricating Oil, Waste Vegetable Oil, and Waste Glycerine (Subject to selection of the correct impeller material for chemical compatibility). The motors supplied with these pumps are Continuous Duty rated, and will go on and on

The Flexible Impeller itself is made from either NBR, Viton, Neoprene, or EPDM, Viton being a rubber which is chemically resistant to liquids of many types including the above mentioned liquids. The impeller blades flex as particle matter passes between them and the pump housing, this prevents damage to the impeller and promotes long life of the pump. NBR is suitable for conventional diesel and motor oils only

These pumps are especially popular with producers of Bio Fuels, who require pumps which can suck up Waste Oil from a storage bin / tank and dispense it into a drum or other vessel for removal from site

Available in 230vAC 50Hz only

ATEX Motor Specification; AREMO II2G Exd IIC T4 IP55 Ta40°C IC411 CLF

Product Options:

(All prices include VAT)

2000-A VITON 230vAC - (£1478.00)
2000-B VITON 230vAC - (£1665.00)

Product Code: OILP3GRC20
