Zuwa Zumpe, Flexible Impeller Pumps, Motor Driven (Aluminium)
  • Click to enlarge

Zuwa Zumpe, Flexible Impeller Pumps, Motor Driven

2021 - Zuwa have imposed a Minimum Order Value, so we are now unable to supply Zuwa products below the combined value of, currently, 650.00 GBP.

Featuring an Aluminium impeller case, and Aluminium end closure, these pumps are designed for liquids which are not chemically agressive to Aluminium, and are non-abrasive. Also available with Stainless Steel impeller case with Aluminium end closure, for liquids which are mildly abrasive, or with a fully Stainless impeller housing for abrasive liquids, corrosive to Aluminium

These top quality, extremely durable Flexible-Impeller pumps are excellent for pumping viscous liquids which have a particulate content, for example Waste Engine Oil, Waste Cutting Oil, Waste Lubricating Oil, Waste Vegetable Oil, and Waste Glycerine (Subject to selection of the correct impellor material for chemical compatibility). The motors supplied with these pumps are Continuous Duty rated, and will go on and on

The Flexible Impeller itself is made from either NBR, Viton, Neoprene, or EPDM, Viton being a rubber which is chemically resistant to liquids of many types including the above mentioned liquids. The impeller blades flex as particle matter passes between them and the pump housing, this prevents damage to the impeller and promotes long life of the pump. NBR is suitable for conventional diesel and motor oils only

These pumps are especially popular with producers of Bio Fuels, who require pumps which can suck up Waste Oil from a storage bin / tank and dispense it into a drum or other vessel for removal from site

Available in a variety of voltages including 12vDC, 24vDC, 230vAC and 400vAC. Model 2000-A is also available in 110v50Hz, but other models are not.

STANDARD MODEL IS FITTED WITH A UNI-DIRECTIONAL MOTOR AND 1/0 ROCKER SWITCH, THIS MEANS IT CAN ONLY PUMP IN ONE DIRECTION. 230vACPUMPS CAN BE SUPPLIED WITH A BI-DIRECTIONAL MOTOR AND 1/0/1 ROTARY SWITCH, THIS ENABLES THE PUMP TO PUMP IN BOTH DIRECTIONS, HOWEVER, THIS OPTION MUST BE SELECTED AT TIME OF PURCHASE, IT CANNOT BE FITTED LATER AS IT REQUIRES A DIFFERENT MOTOR TO BE USED DURING MANUFACTURE. SELECT OPTION "Bi-Directional Switch" FROM THE OPTIONS LISTED BELOW, AS WELL AS THE PUMP YOU REQUIRE.

Female Threaded Hose Tails can be found at the links below;

​​​​​​​Not all options are listed - for further information or assistance in selecting the right pump, please email us or give us a call!

Impeller Maximum Operating Temperatures
MaterialMaximum Operating Temperature
NBR90°c
EPDM90°c
Viton90°c
Neoprene90°c
Desmopan (TPU)60°c
Performance
Model2000-A2000-B2000-C
Flow Rate30 lpm Max @ 3000 RPM60 lpm @ 3000 RPM90 lpm @ 3000RPM
Suction Head Max (Dry) Using NBR Impellor3m3m3m
Suction Head Max (Wet) Using NBR Impellor7m7m7m
Outlet Pressure Max @ 3000 RPM5 Bar5 Bar5 Bar
Liquid Temperature MaxDependent on Impeller SelectionDependent on Impeller SelectionDependent on Impeller Selection
Inlet Fitting3/4" BSP Male1" BSP Male1.25" BSP Male
Outlet Fitting3/4" BSP Male1" BSP Male1.25" BSP Male
Motor Specifications
VoltageMotor RPM (Not Variable)2000-A2000-B2000-CIP Rating
12vDC15000.25 Kw / 39 Amps0.37 Kw / 50 AmpsNot AvailableIP 54
12vDC30000.25 Kw / 42 Amps0.37 Kw / 49 AmpsNot AvailableIP 54
24vDC15000.25 Kw / 12 Amps0.37 Kw / 23 AmpsNot AvailableIP 54
24vDC30000.25 Kw / 18 Amps0.37 Kw / 23 AmpsNot AvailableIP 54
230vAC 50Hz14000.37 Kw / 3.2 Amps0.55 Kw / 4.4 AmpsNot AvailableIP 54
230vAC 50Hz28000.37 Kw / 3.2 Amps0.55 Kw / 4.0 Amps1.1 Kw / 8.8 AmpsIP 54
400vAC 50Hz14000.37 kw / 2.1 Amps0.55 Kw / 2.8 AmpsNot AvailableIP 54
400vAC 50Hz28000.37 Kw / 1.9 Amps0.55 Kw / 2.4 Amps1.1 Kw / 2.7 AmpsIP 54
Wetted Components
HousingAluminium; Al Mg Si 1
CoverAluminium; Al Mg Si 1
ShaftStainless Steel; 1.4104
ImpellerNBR, Viton, Neoprene or EPDM
Shaft SealNBR, Viton, Neoprene or EPDM
Impeller Case & Cover SealNBR, Viton, Neoprene or EPDM

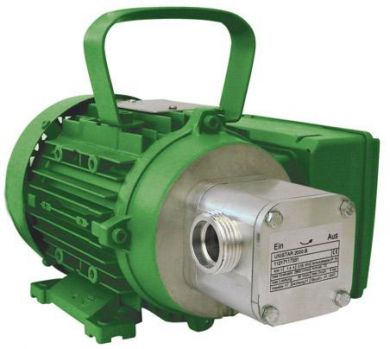

Shown Below, Pump Fitted with DC Motor:

Shown Below; Optional Pump Carrier;

A pump carrier serves to protect the motor from ingress of liquids that may be corrosive to the pump shaft seal, if the seal is compromised, the liquid will leak out of the pump, and out through the carrier into a drip tray / absorption mat, instead of entering the motor winding's, destroying the motor. The pump carrier does not enable the pump to be run at higher temperatures, becauSe the temperature is limited to 90°c by the rubber impeller inside it.

*PUMP CARRIER MUST BE ORDERED WITH THE PUMP/S, IT CANNOT BE FITTED IN RETROSPECT*

Performance Curve - 2000-A

Performance Curve - 2000-B

Performance Curve - 2000-C

Download 2000-A Dimensional Drawing PDFDownload 2000-A Dimensional Drawing PDF

Download 2000-B Dimensional Drawing PDFDownload 2000-B Dimensional Drawing PDF
