Flexible Impeller Pumps, Motor Driven (Stainless Steel)

Flexible Impeller Pumps, Motor Driven (Stainless Steel)

Product Information

Flexible Impeller Pumps, Motor Driven

Featuring a Stainless Steel impeller case, and Stainless Steel end closure, these pumps are designed for liquids which are not chemically agressive to Stainless Steel, and are mildly abrasive, the Stainless Steel impeller case preventing wear of the impeller chamber. Also suitable for Foodstuffs

These top quality, extremely durable Flexible-Impeller pumps are excellent for pumping viscous liquids which have a particulate content, for example Waste Engine Oil, Waste Cutting Oil, Waste Lubricating Oil, Waste Vegetable Oil, and Waste Glycerine (Subject to selection of the correct impellor material for chemical compatibility). The motors supplied with these pumps are Continuous Duty rated, and will go on and on

The Flexible Impeller itself is made from either NBR, Viton, Neoprene, or EPDM, Viton being a rubber which is chemically resistant to liquids of many types including the above mentioned liquids. The impeller blades flex as particle matter passes between them and the pump housing, this prevents damage to the impeller and promotes long life of the pump. NBR is suitable for conventional diesel and motor oils only

These pumps are especially popular with producers of Bio Fuels, who require pumps which can suck up Waste Oil from a storage bin / tank and dispense it into a drum or other vessel for removal from site

Available in a variety of voltages including 230v, 12vDC, and 24vDC

Not all options are listed - for further information or assistance in selecting the right pump, please email us or give us a call!

Performance
Model 2000-A 2000-B 2000-C 2000-D 2000-E 2000-F
Flow Rate 30 lpm 60 lpm 96 lpm 166 lpm 375 lpm 730 lpm
Suction Head Max 7m (3m Dry) 7m (3m Dry) 7m (3m Dry) 7m (3m Dry) 7m  (3m Dry) 7m (3m Dry)
Outlet Pressure Max 5 Bar 5 Bar 5 Bar 5 Bar 3 Bar 3 Bar
Liquid Temperature Max 90 Celcius 90 Celcius 90 Celcius 90 Celcius 90 Celcius 90 Celcius
Fittings 3/4" BSP Male 1" BSP Male 1.25" BSP Male 1.5" BSP Male 2" BSP Male 3" BSP Male
Motor Specifications
Voltage RPM 2000-A kW 2000-B Kw 2000-C Kw 2000-D Kw 2000-E Kw 2000-F Kw IP Rating
230vAC 900 0.56 0.56 0.56 0.56 0.56 0.56
230vAC 1400 0.75 0.75 0.75 0.75 0.75 0.75 IP 55
12vDC 3000 0.25 0.37         IP 44
24vDC 900 0.50 0.50 0.50       IP 44
Wetted Components
Housing Stainless Steel; 1.4571
Cover Stainless Steel; 1.4571
Shaft Stainless Steel; 1.4104
Impeller NBR, Viton, Neoprene or EPDM
Shaft Seal NBR, Viton, Neoprene or EPDM
Impeller Case & Cover Seal NBR, Viton, Neoprene or EPDM

Shown Below, Model 2000-A, and 2000-B

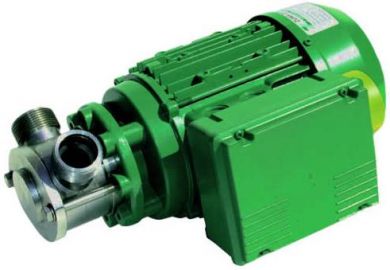

Shown Below, Model 2000-C

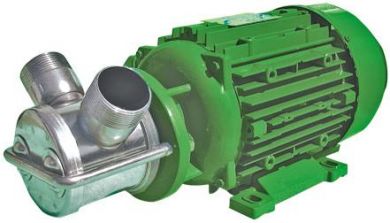

Shown Below, Model 2000-D

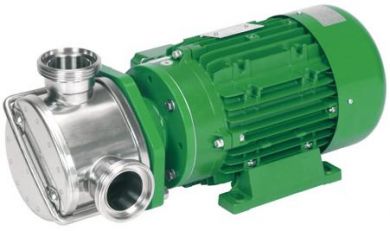

Shown Below, Model 2000-E

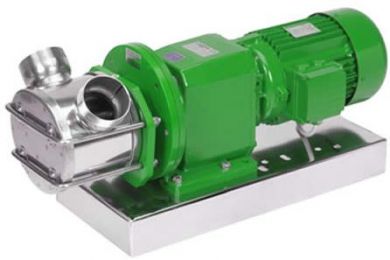

Shown Below, Model, 2000-F

Product Options:

(All prices include VAT)

2000-A VITON 12vDC - (£959.00)
2000-A VITON 230vAC - (£615.00)
2000-A VITON 24vDC - (£959.00)
2000-B VITON 12vDC - (£960.00)
2000-B VITON 230vAC - (£877.00)
2000-B VITON 24vDC - (£960.00)

Product Code: FLEJSGHQ20

Quantity: Add to Basket
