Flexible Impeller Pumps, Shaft Driven (Aluminium & Stainless Steel)

Flexible Impeller Pumps, Shaft Driven (Aluminium & Stainless Steel)

Product Information

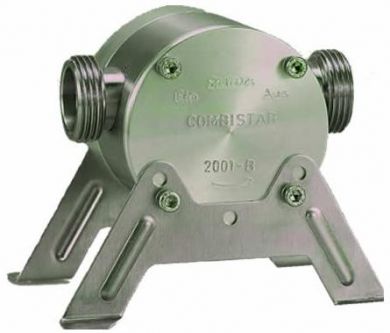

Flexible Impeller Pumps, Shaft Driven

Featuring a Stainless Steel impeller case, and Aluminium end closure, these pumps are designed for liquids which are not chemically agressive to Aluminium, and are mildly abrasive, the Stainless Steel impeller case preventing wear of the impeller chamber. Also available with fully Stainless impeller housing for liquids corrosive to Aluminium, or Foodstuffs

Top quality, shaft-driven flexible impeller pumps for pumping any chemicals that are not agressive to the pumps component materials. The pump can also handle solid, non abrasive material such as sludge from oil tanks, so are ideal for pump outs or as a pump to evacuate sump areas of machinery, for applications where large abrasive particles are present always use a foot-valve with strainer to prevent the ingress of this material

This pump can be powered by a battery or mains powered drill or by making an adaptor to suit any motor shaft

Not all options are listed - for further information or assistance in selecting the right pump, please email us or give us a call!

Wetted Components
Impeller Case Stainless Steel; 1.4571
Impeller Cover Aluminium; Al Mg Si 1
Impeller Case & Cover Seal NBR, Viton, Neoprene, or EPDM (Select From Options)
Motor Shaft Seal NBR, Viton, Neoprene, or EPDM (Select From Options)
Rotor / Gear / Impellor NBR, Viton, Neoprene, or EPDM (Select From Options)
Motor Shaft Stainless Steel; 1.4104
Bypass Valve Piston Not Present
Bypass Valve Seal Not Present
Bypass Valve Spring Not Present
Performance
  Flexim 1 (2001-A) Flexim 2 (2001-B/)
RPM 300 - 2800 300 - 2800
Duty Cycle Continuous Continuous
Bypass Valve Y/N N N
Max Flow 30 lpm @ 0 m head 30 lpm @ 0 m head
Discharge Pressure 4.0 Bar 4.0 Bar
Max Suction Lift (Dry) 3 m 3 m
Max Suction Lift (Wet) 7 m 7 m
Inlet Fitting 3/4" BSP Male 1" BSP Male
Outlet Fitting 3/4" BSP Male 1" BSP Male
Shaft Diameter 10 mm 10 mm
Max Particle Tolerance 5 mm (Non Abrasive) 5 mm (Non Abrasive)
Max Liquid Temp 60 Celcius 60 Celcius
Min Liquid Temp
Max Room Temp 60 Celcius 60 Celcius
Min Room Temp
Thermal Protection Y/N N N
Max Liquid Viscosity Any Any
Ingress Protection Waterproof Waterproof

Product Options:

(All prices include VAT)

Flexim 1 - Viton - (£303.00)
Flexim 2 - Viton - (£369.00)

Product Code: FLEMTNIN20

Quantity: Add to Basket
