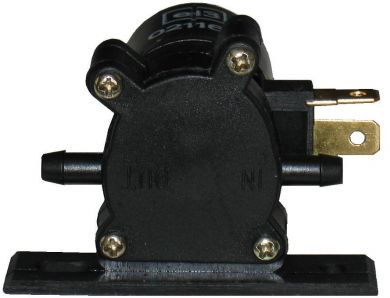

Miniature Gear Pump 12v or 24v DC

Product Information

Miniature Gear Pump

Extremely small and lightweight gear pump, specifically designed for pumping Ethylene Glycol, but can be used with any fuels that are not agressive to the pumps component materials

Complete with moulded-on mounting bracket

Wetted Components
Pump Body	Glass Reinforced Polypropylene
Impellor Case	Glass Reinforced Polypropylene
Impellor Case Seal	NBR
Motor Shaft Seal	Viton
Vanes	Not Present
Vane Springs	Not Present
Rotor / Gear / Impellor	Polypropylene
Shaft Key / Nut	Not Present
Motor Shaft	Stainless Steel
Bypass Valve Piston	Not Present
Bypass Valve Seal	Not Present
Bypass Valve Spring	Not Present

Performance
Voltage / Frequency	12vDC, or 24vDC
kW
Amps	5.0
RPM
Duty Cycle	5 Min
Cable Length	Not Present
Bypass Valve Y/N	N
Max Flow	2.5 lpm
Discharge Pressure	1 Bar / 14.5 PSI
Max Suction Lift (Dry)	1 m
Max Suction Lift (Wet)	2 m
Inlet Fitting	3/16" Hose Tail
Outlet Fitting	3/16" Hose Tail
Max Particle Tolerance	10 Micron
Max Liquid Temp	40 Celcius
Min Liquid Temp
Max Room Temp	40 Celcius
Min Room Temp
Thermal Protection Y/N	Y
Max Liquid Viscosity	200 cp
Ingress Protection	None
