Oilybits Electrically Driven Diaphragm Pump, for Adblue

Product Information

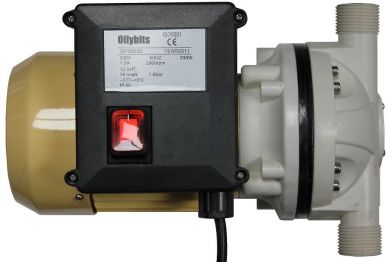

Oilybits Electrically Driven Diaphragm Pump for Adblue

An electrically driven diaphragm pump suitable for Adblue

Self priming, and capable of delivering 34 lpm with a maximum output pressure of 1.6 Bar. This pump is also suitable for dispensing Adblue through an Automatic Nozzle

Wetted Components
Pump Body	Polypropylene
Diaphragms	Viton
Diaphragm Valves	TPU
Motor Shaft	Sintered (Stainless) Steel

Performance
Part Number	GP30230
Voltage	230vAC 50HZ (EU)
Max Suction Lift	3 m
Max Flow	34 lpm
Outlet Pressure	1.6 Bar
Max Viscosity	Adblue
Internal Bypass	No
Adjustable Bypass	No
Power Kw	0.33
RPM	2900
Max Liquid Temp	55°
Max Room Temp	40°
Ingress Protection	IP55
Ports - Viscomat	1" BSP Male, CW 25mm Male Hose Barbs
Weight	5 kg
