Pedrollo CP Centrifugal Pump

Pedrollo CP Centrifugal Pump

Product Information

Pedrollo CP, Centrifugal Cast Iron Pump

2 Year Manufacturers Warranty

A top quality, Italian made, Centrifugal pump, for use with any fluids that are not chemically agressive to its component materials

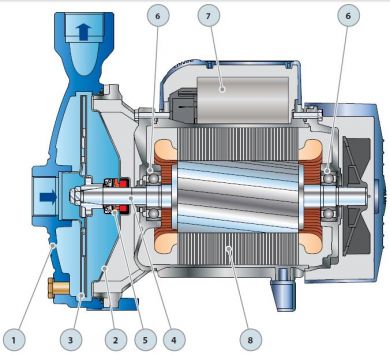

Wetted Components
Pump Body AISI 304 Stainless Steel
Impellor Case Cast Iron (Painted)
Impellor Case Seal NBR
Motor Shaft Seal NBR
Vanes Not Present
Vane Springs Not Present
Rotor / Gear / Impellor Brass
Shaft Key / Nut 304 Stainless Steel
Motor Shaft 304 Stainless Steel
Bypass Valve Piston Not Present
Bypass Valve Seal Not Present
Bypass Valve Spring Not Present
Performance
Voltage / Frequency 110v50Hz, 230v50Hz, or 415v50Hz
kW Various, Consult PDF Below
Amps Various, Consult PDF Below
RPM 2900
Duty Cycle Continuous
Cable Length Not Present
Bypass Valve Y/N N
Max Flow Various, Consult PDF Below - Max 150 lpm
Discharge Pressure Various, Consult PDF Below
Max Suction Lift (Dry) None
Max Suction Lift (Wet) 7 m
Inlet Fitting Various, Consult PDF Below
Outlet Fitting Various, Consult PDF Below
Max Particle Tolerance 100 Micron
Max Liquid Temp +90° Celcius
Min Liquid Temp -10° Celcius
Max Room Temp +40° Celcius
Min Room Temp TBC
Thermal Protection Y/N Y
Max Liquid Viscosity Water
Ingress Protection IP44
Options Available
Single Phase 230v Three Phase 415v kW (230v) lpm Head (m)
CPm100   0.25 10-60 15-7
CPm130   0.37 10-80 22-14
  CP 130 0.37 10-80 22-14
CPm 132A   0.60 20-120 22-9
  CP 132A 0.60 20-120 22-9
CPm 150   0.75 20-120 29-15
  CP 150 0.75 20-120 29-15
CPm 158   0.75 10-90 34-25
  CP 158 0.75 10-90 34-25
CPm170 CP 170 1.1 30-120 38-22
CPm170/M CP 170/M 1.1 30-160 35-19
CPm190   1.5 30-140 46-26
  CP 190 1.5 30-140 46-26
  CP 200 2.2 30-150 55-36

For 110v 50Hz, and 60Hz motors please email us for availability and price. As a rule, where available, 110v motors or 60Hz options are 15% more exensive than their 230v counterparts

Download Pedrollo CP132A Pump, 80 lpm  PDFDownload Pedrollo CP132A Pump, 80 lpm PDF
