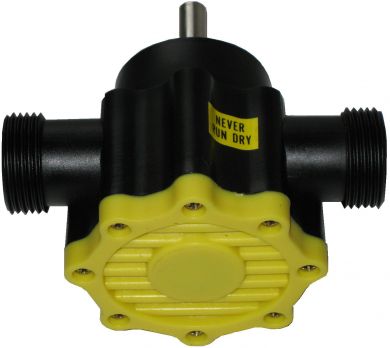

Self Priming (NBR) Drill Powered Pump, 50 lpm

Product Information

Self Priming, Drill Operated Pump

A flexible-impellor pump, for use with any fluids that are not chemically agressive to its component materials. Popular for transferring diesel, kerosene, motor oil, fresh water, and salt water

2-Bolt surface mounting foot plate

Fully self priming from 3m above the liquid source

Must NOT be run dry for more than 30 seconds

Wetted Components
Pump Body	Nylon
Impellor Case	Nylon
Impellor Case Seal	NBR
Motor Shaft Seal	NBR
Vanes	Not Present
Vane Springs	Not Present
Rotor / Gear / Impellor	NBR
Shaft Key / Nut	Not Present
Motor Shaft	Stainless Steel
Bypass Valve Piston	Not Present
Bypass Valve Seal	Not Present
Bypass Valve Spring	Not Present

Performance
Voltage / Frequency	None, Shaft Driven
kW	NA
Amps	NA
RPM	3000
Duty Cycle	Continuous
Cable Length	Not Present
Bypass Valve Y/N	N
Max Flow	50 lpm @ 0 m head
Discharge Pressure	2.0 Bar Working, 3.0 Bar Max
Max Suction Lift (Dry)	3.0 m
Max Suction Lift (Wet)	4.0 m
Inlet Fitting	3/4" BSP Male
Outlet Fitting	3/4" BSP Male
Max Particle Tolerance	2000 Micron
Max Liquid Temp	40 Celcius
Min Liquid Temp
Max Room Temp	40 Celcius
Min Room Temp
Thermal Protection Y/N	N
Max Liquid Viscosity
Ingress Protection	Waterproof
