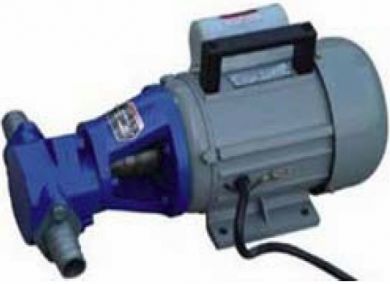

Oilybits Portable Gear Pumps for Waste Oil 30-75 lpm

Oilybits Portable Gear Pumps for Waste Oil 30-75 lpm

Product Information

Oilybits, Portable Gear Pumps

Excellent quality, robust, and reliable Portable Gear Pumps for transferring viscous oils between containers, these pumps have been designed to be chemically compatible with fluids such as Vegetable Oil, Motor Oil, Lubricating Oils and Light Greases, and other medium to high viscosity oils and other non corrosive viscous substances

Featuring a plastic carry handle and 4 bolt foot plate, these pumps can be carried around as they are, or mounted to a skid for extra durability (recommended)

Complete with hose tails as shown, sizes noted in chart below

PLEASE NOTE - These pumps can handle a maximum particle size of 250 micron (1/4 of a millimeter). If you intend to use the pump for wastecutting oil (or any other oil with SOLID particle contamination)collection then you will need to install an inline filter to protect the pump from debris which could damage the internal gears. If you are likely to becollecting oil with very heavy contamination regularly then we always recommend using one of our Flexible Impellor Pumps which can handle very large solids without risking damage to the pump impellor or motor

Wetted Components
Motor Face Cast Iron
Impellor Case Cast Iron
Impellor Case Seal Viton
Motor Shaft Seal Viton
Vanes Not Present
Vane Springs Not Present
Rotor / Gear / Impellor Steel
Shaft Key / Nut Steel
Motor Shaft Steel
Bypass Valve Piston Not Present
Bypass Valve Seal Not Present
Bypass Valve Spring Not Present
Performance
Piusi Part Number Oilybits HG 30 Oilybits HG 50 Oilybits HG 75
Voltage / Frequency 230vAC 50Hz (EU) 230vAC 50Hz (EU) 230vAC 50Hz (EU)
kW 0.37 0.55 0.75
Amps 1.60 2.40 3.26
RPM
Duty Cycle Continuous Continuous Continuous
Cable Length 2 m 2 m 2 m
Bypass Valve Y/N N N N
Max Flow (Open) 30 lpm @ 0.5 Bar 50 lpm @ 0.5 Bar 75 lpm @ 0.5 Bar
Discharge Pressure 3.0 Bar 3.0 Bar 3.0 Bar
Max Suction Lift (Dry) 1.0 m 1.0 m 1.0 m
Max Suction Lift (Wet) 1.0 m 1.0 m 1.0 m
Inlet Fitting 20 mm Hose Bard 20 mm Hose Barb 25 mm Hose Barb
Outlet Fitting 20 mm Hose Barb 20 mm Hose Barb 25 mm Hose Barb
Max Particle Tolerance 250 micron 250 micron 250 micron
Max Liquid Temp 57° 57° 57°
Min Liquid Temp
Max Room Temp 40° 40° 40°
Min Room Temp
Thermal Protection Y/N Y Y Y
Max Liquid Viscosity Vegetable Oil Vegetable Oil Vegetable Oil
Ingress Protection IP55 IP55 IP55

It is also possible to run this pump in a vehicle by using a 12vDC to 230vAC Power Inverter - shown in image below (Not Included), these are available HERE

Product Options:

(All prices include VAT)

Oilybits HG 30 - (£215.00)
Oilybits HG 50 - (£235.00)
Oilybits HG 75 - (£250.00)

Product Code: OILP20

OUT OF STOCK
