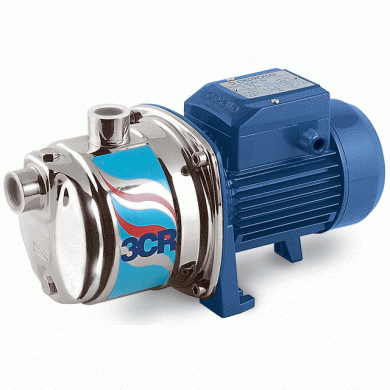

Pedrollo 3-4 CR Centrifugal Pump

Product Information

Pedrollo 3-4 CR Stainless Steel, Multi-Stage Centrifugal Pump

2 Year Manufacturers Warranty

A top quality, Italian made centrifugal pump, for use with any thin viscosity fluids that are not chemically agressive to its component materials

Wetted Components
Pump Body	AISI 304 Stainless Steel
Impellor Case	AISI 304 Stainless Steel
Impellor Case Seal	NBR
Motor Shaft Seal	NBR
Vanes	Not Present
Vane Springs	Not Present
Rotor / Gear / Impellor	Glass Reinforced Polypropylene
Shaft Key / Nut	304 Stainless Steel
Motor Shaft	304 Stainless Steel
Bypass Valve Piston	Not Present
Bypass Valve Seal	Not Present
Bypass Valve Spring	Not Present

Performance
Voltage / Frequency	110v50Hz, 230v50Hz, or 3-Phase 415v50Hz
kW	Various, Consult PDF Below
Amps	Various, Consult PDF Below
RPM	Various, Consult PDF Below
Duty Cycle	Continuous
Cable Length	Not Present
Bypass Valve Y/N	N
Max Flow	Various, Consult PDF Below - Max 120 lpm
Discharge Pressure	Various, Consult PDF Below
Max Suction Lift (Dry)	None
Max Suction Lift (Wet)	7 m
Inlet Fitting	1" BSP
Outlet Fitting	1" BSP
Max Particle Tolerance	100 Micron
Max Liquid Temp	+40° Celcius
Min Liquid Temp	-10° Celcius
Max Room Temp	+40° Celcius
Min Room Temp	TBC
Thermal Protection Y/N	Y
Max Liquid Viscosity	Water
Ingress Protection	IP44

Options Available
Single Phase 230v	Three Phase 415v	kW (230v)	lpm	Head (m)
2CRm80		0.37	5-70	24-5
3CRm80		0.50	5-70	36-10
	3CR 80	0.50	5-70	36-10
4CRm80		0.60	5-80	48-10
	4CR 80	0.60	5-80	48-10
3CRm100		0.60	5-110	36-10
	3CR100	0.60	5-110	36-10

For 110v 50Hz, and 60Hz motors please email us for availability and price. As a rule, where available, 110v motors or 60Hz options are 15% more exensive than their 230v counterparts
