Pedrollo CK Liquid Ring Pump

Pedrollo CK Liquid Ring Pump

Product Information

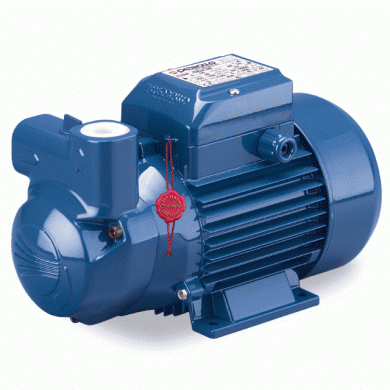

Pedrollo CK Self-Priming (Liquid Ring) Cast Iron Pump

2 Year Manufacturers Warranty

A top quality, Italian made, Liquid-Ring pump, for use with any fluids that are not chemically agressive to its component materials

Supplied as standard with Viton Seals

Wetted Components
Pump Body Cast Iron (Painted)
Impellor Case Cast Iron (Painted)
Impellor Case Seal Viton
Motor Shaft Seal Viton
Vanes Not Present
Vane Springs Not Present
Rotor / Gear / Impellor Brass
Shaft Key / Nut 304 Stainless Steel
Motor Shaft 304 Stainless Steel
Bypass Valve Piston Not Present
Bypass Valve Seal Not Present
Bypass Valve Spring Not Present
Performance
Voltage / Frequency 110v50Hz, 230v50Hz, or 415v50Hz
kW Various, Consult PDF Below
Amps Various, Consult PDF Below
RPM Various, Consult PDF Below
Duty Cycle Continuous
Cable Length Not Present
Bypass Valve Y/N N
Max Flow Various, Consult PDF Below - Max 50 lpm
Discharge Pressure Various, Consult PDF Below
Max Suction Lift (Dry) None
Max Suction Lift (Wet) 9 m
Inlet Fitting Various, Consult PDF Below
Outlet Fitting Various, Consult PDF Below
Max Particle Tolerance 100 Micron
Max Liquid Temp +90° Celcius
Min Liquid Temp TBC
Max Room Temp +40° Celcius
Min Room Temp TBC
Thermal Protection Y/N Y
Max Liquid Viscosity Water
Ingress Protection IP44
Options Available
Single Phase 230v Three Phase 415v kW (230v) lpm Head (m)
CKm50   0.37 5-40 31-5
  CK 50 0.37 5-40 31-10
CKm50 BP   0.37 20-40 20-10
  CK 50 BP 0.37 20-40 20-10
 CKm80   0.60 5-50 46-10
  CK 80 0.60 5-50 46-10
CKm90 CK 90 0.75 5-50 49-13

For 110v 50Hz, and 60Hz motors please email us for availability and price. As a rule, where available, 110v motors or 60Hz options are 15% more exensive than their 230v counterparts

Download Pedrollo CK50 Pump, 40 lpm PDFDownload Pedrollo CK50 Pump, 40 lpm PDF

Product Options:

(All prices include VAT)

CK 50 - (£325.00)
CK 50 BP - (£355.00)
CK 80 - (£384.00)
CK 90 - (£395.00)
CKm50 - (£306.00)
CKm50 BP - (£335.00)
CKm80 - (£365.00)
CKm90 - (£395.00)

Product Code: PU002
