Pedrollo PQ(/M)90 Pump, 40 lpm

Pedrollo PQ(/M)90 Pump, 40 lpm

Product Information

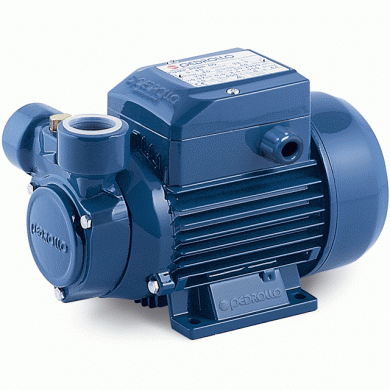

Pedrollo PQ(/M)90 Cast Iron (Treated) Pump

2 Year Manufacturers Warranty

A top quality, High-Pressure, Radial-Peripheral-Vane pump, for use with any fluids that are not chemically agressive to its component materials

This pump is popular for applications where fuel or water needs pushing to a high level, this pump capable of pushing fuel some 90 metres vertially. It is also popular for test-rig applications where test pieces need to be subjected to high pressures.

Wetted Components
Pump Body Cast Iron (Painted)
Impellor Case Cast Iron (Painted)
Impellor Case Seal NBR
Motor Shaft Seal NBR
Vanes Not Present
Vane Springs Not Present
Rotor / Gear / Impellor Brass
Shaft Key / Nut 304 Stainless Steel
Motor Shaft 304 Stainless Steel
Bypass Valve Piston Not Present
Bypass Valve Seal Not Present
Bypass Valve Spring Not Present
Performance
Voltage / Frequency 110v, 230v, 415v / 50Hz
kW 0.75
Amps
RPM
Duty Cycle Continuous
Cable Length Not Present
Bypass Valve Y/N N
Max Flow 40 lpm @ 5 m head
Discharge Pressure 9.0 Bar / 130.5 PSI
Max Suction Lift (Dry) None
Max Suction Lift (Wet)
Inlet Fitting 3/4" BSP
Outlet Fitting 3/4" BSP
Max Particle Tolerance 100 Micron
Max Liquid Temp 90 Celcius
Min Liquid Temp
Max Room Temp 40 Celcius
Min Room Temp
Thermal Protection Y/N Y
Max Liquid Viscosity Water
Ingress Protection IP44

Download Pedrollo PQ(/M)90 Pump, 40 lpm PDFDownload Pedrollo PQ(/M)90 Pump, 40 lpm PDF

Product Options:

110vAC 50Hz - (£375.00)
230vAC 50Hz - (£342.00)
3-Phase 415vAC 50Hz - (£342.00)
Spare - Seal Kit NBR - (£24.00)
Spare - Seal Kit VITON - (£36.00)

Product Code: PU008

Quantity: Add to Basket
