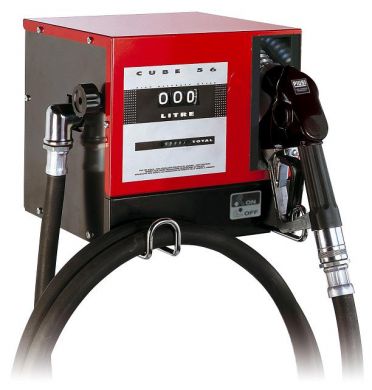

Piusi Cube 56 Fuel Dispensing System

Product Information

Piusi cube 56 Fuel Dispensing Systems

Cube pumps have been developed for the distribution of Diesel fuel in non-commercial uses

With Cube fuel pumps, vehicles can be refuelled quickly and safely, with various options for measuring and recording the quantities dispensed

The flow-meters mounted on Cube pumps have sturdy mechanical readout systems whose reliability and easiness to use have been proved by time

Simple and versatile, Cube pumps can also be installed on drums, thanks to their 2” quick couplings

Featuring a Flowmeter, power-isolating nozzle holster, 4m delivery hose, and automatic shut-off dispensing nozzle. Can be wall mounted or sat on top of a standard 2" BSP fill point with a suitable adaptor

Supplied without suction hose (but with foot valve and hose tails). Hose can be purchased HERE, we always recommend steel reinforced hose for suction lines

Three voltage options available, see details below:

Wetted Components
Pump Body	Aluminium
Impellor Case	Cast Iron
Impellor Case Seal	Viton
Motor Shaft Seal	Viton
Vanes	Acetyl
Vane Springs	Steel
Rotor / Gear / Impellor	Steel
Shaft Key / Nut	Steel
Motor Shaft	Steel
Bypass Valve Piston	Acetyl Resin
Bypass Valve Seal	Viton
Bypass Valve Spring	Stainless Steel

Performance - Piusi Cube 56
Piusi Part Number	000575A20	00057500C	00057800C	F0057600C
Voltage / Frequency	110v60Hz (USA)	230v50Hz (EU)	230v60Hz (Far East)	12vDC
kW	0.55	0.36	0.55	0.36
Amps
RPM	2800	2800	2800	2800
Duty Cycle	30 Minute	30 Minute	30 Minute	30 Minute
Cable Length	3 m	3 m	3 m	3 m
Bypass Valve Y/N	Y	Y	Y	Y
Max Flow	68 lpm	56 lpm	68 lpm	56 lpm
Discharge Pressure	1.6 Bar	1.6 Bar	1.6 Bar	1.6 Bar
Max Suction Lift (Dry)	3.0 m	3.0 m	3.0 m	3.0 m
Max Suction Lift (Wet)	3.0 m	3.0 m	3.0 m	3.0 m
Inlet Fitting	1" BSP	1" BSP	1" BSP	1" BSP
Outlet Fitting	1" BSP	1" BSP	1" BSP	1" BSP
Max Particle Tolerance	100 Micron	100 Micron	100 Micron	100 Micron
Max Liquid Temp	40 Celcius	40 Celcius	40 Celcius	40 Celcius
Min Liquid Temp
Max Room Temp	40 Celcius	40 Celcius	40 Celcius	40 Celcius
Min Room Temp
Thermal Protection Y/N	Y	Y	Y	Y
Max Liquid Viscosity	Diesel	Diesel	Diesel	Diesel
Ingress Protection	IP54	IP54	IP54	IP54
Flowmeter Accuracy	± 1%	± 1%	± 1%	± 1%
