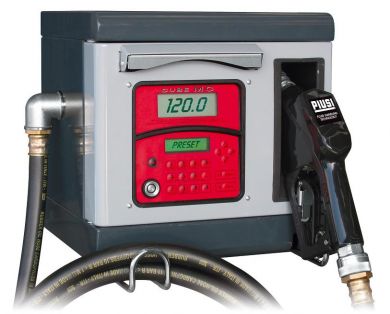

Piusi Cube 70 MC Electronic Fuel Management System

Piusi Cube 70 MC Electronic Fuel Management System

Product Information

Piusi Cube 70 MC Electronic Fuel Management System

High quality models fitted with oval gear meters and an electronic unit for multiuser control and preselected dispensing

  • Local memory capable of storing data for last 255 operations
  • Interfaces with PC for sending and organising data
  • Possibility of entering vehicle registration number, kilometres, date and time of dispensing operation
  • Magnetic keys (Kit keys) available for user identification (Not Included)
  • On request: a dedicated software for printing individual summaries of dispensing details

Suitable with Diesel or Biodiesel up to B5

Wetted Components
Pump Body Aluminium
Impellor Case Cast Iron
Impellor Case Seal Viton
Motor Shaft Seal Viton
Vanes Acetyl Resin
Vane Springs Not Present
Rotor / Gear / Impellor Steel
Shaft Key / Nut Steel
Motor Shaft Steel
Bypass Valve Piston Brass
Bypass Valve Seal Viton
Bypass Valve Spring Stainless Steel
Performance
Piusi Part Number F0059400B F0059418A F0059413A F0059414A F0059415A F0059404B
Voltage / Frequency 230vAC 50Hz (EU) 110vAC 60Hz (USA) 12vDC 24vDC 230vAC 50Hz (EU) 230vAC 60Hz (Far East)
Maximum Users 50 50 50 50 120 50
kW 0.55 0.55 0.36 0.50 0.55 0.55
Amps
RPM 2800 2800 2800 2800 2800 2800
Duty Cycle 30 Minutes 30 Minutes 30 Minutes 30 Minutes 30 Minutes 30 Minutes
Cable Length 4 m 4 m 4 m 4 m 4 m 4 m
Bypass Valve Y/N Y Y Y Y Y Y
Max Flow 70 lpm 68 lpm 56 lpm 70 plm 70 lpm 68 lpm
Discharge Pressure 1.6 Bar 1.6 Bar 1.6 Bar 1.6 Bar 1.6 Bar 1.6 Bar
Max Suction Lift (Dry) 3.0 m 3.0 m 3.0 m 3.0 m 3.0 m 3.0 m
Max Suction Lift (Wet) 3.0 m 3.0 m 3.0 m 3.0 m 3.0 m 3.0 m
Inlet Fitting 1" BSP 1" NPT 1" BSP 1" BSP 1" BSP 1" BSP
Outlet Fitting 1" BSP 1" BSP 1" BSP 1" BSP 1" BSP 1" BSP
Max Particle Tolerance 100 Micron 100 Micron 100 Micron 100 Micron 100 Micron 100 Micron
Max Liquid Temp 55 55 55 55 55 55
Min Liquid Temp
Max Room Temp 40 40 40 40 40 40
Min Room Temp
Thermal Protection Y/N Y Y Y Y Y Y
Max Liquid Viscosity Diesel Diesel Diesel Diesel Diesel Diesel
Ingress Protection IP55 IP55 IP55 IP55 IP55 IP55
Weight 25 kg 25 kg 25 kg 25 kg 25 kg 25 kg
Accuracy ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%

Download Piusi Cube 70 MC Cabinet Pump - Catalogue Page PDFDownload Piusi Cube 70 MC Cabinet Pump - Catalogue Page PDF

Download Piusi Cube 70MC Cabinet Pump - Manual PDFDownload Piusi Cube 70MC Cabinet Pump - Manual PDF

Download Piusi Cube 70MC Cabinet Pump - Spares Exploded Diagram PDFDownload Piusi Cube 70MC Cabinet Pump - Spares Exploded Diagram PDF

Product Options:

(All prices include VAT)

12vDC - (£1478.00)
230vAC 50Hz - (£1465.00)
230vAC 50HZ (120 User) - (£1562.00)
24vDC - (£1534.00)
Accessories - 10 User Keys Gr. - (£133.00)
Accessories - 10 User Keys Ye. - (£133.00)
Accessories - PC Software Kit - (£488.00)
Mounting Pedestal (Grey) - (£207.00)

Product Code: PIUI5

Quantity: Add to Basket
