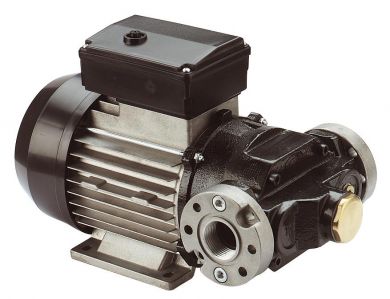

Piusi E80 Vane Pump, 75 LPM

Product Information

Piusi E80 Vane Pump, 75 lpm

Positive Displacement, self-priming, rotary electric vane pumps for transferring Diesel. Powerful, dependable and economical, they are also available with single and three-phase AC motors. Thanks to their compact size, ease of installation, dependability and safety, they are used to equip fuel pumps for private use, fixed systems for transferring fuel and other industrial applications

Technical Characteristics:

Cast iron pump body with anti-corrosion treatment and paint
Vane pump with sintered steel rotor and acetal resin vanes
Incorporated by-pass valve
Induction motor with aluminum casing and anchoring brackets
Protection grade IP55
Suitable for continuous service with thermal motor overload protection
1" Flanged connectors
Version with EEX motor available

Suitable with Diesel, and Biodiesel up to B5

Wetted Components
Pump Body	Cast Iron
Impellor Case	Cast Iron
Impellor Case Seal	Viton
Motor Shaft Seal	Viton
Vanes	Acetyl
Vane Springs	Steel
Rotor / Gear / Impellor	Steel
Shaft Key / Nut	Steel
Motor Shaft	Steel
Bypass Valve Piston	Acetyl
Bypass Valve Seal	Viton
Bypass Valve Spring	Stainless Steel

Performance
Piusi Part Number	000305000	000362000	000307000
Voltage / Frequency	230vAC 50Hz (EU)	110vAC 60Hz (USA)	3-Phase 400vAC 50Hz (EU)
kW	0.50	0.50	0.50
Amps
RPM	1400	1750	1400
Duty Cycle	Continuous	Continuous	Continuous
Cable Length	2 m	2 m	2 m
Bypass Valve Y/N	Y	Y	Y
Max Flow (Open)	75 lpm	75 lpm	75 lpm
Discharge Pressure	1.5 Bar	1.5 Bar	1.5 Bar
Max Suction Lift (Dry)	3.0 m	3.0 m	3.0 m
Max Suction Lift (Wet)	3.0 m	3.0 m	3.0 m
Inlet Fitting	1"BSP	1"BSP	1"BSP
Outlet Fitting	1"BSP	1"BSP	1"BSP
Max Particle Tolerance	100 Micron	100 Micron	100 Micron
Max Liquid Temp	55	55	55
Min Liquid Temp
Max Room Temp	40	40	40
Min Room Temp
Thermal Protection Y/N	Y	Y	Y
Max Liquid Viscosity	Diesel	Diesel	Diesel
Ingress Protection	IP55	IP55	IP55
