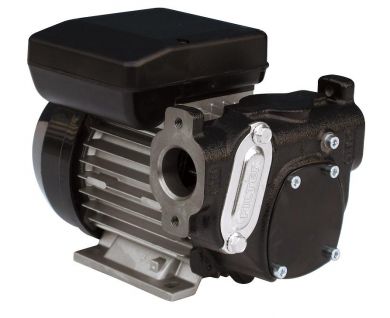

Piusi Panther 56 AC Vane Pump

Product Information

Piusi Panther 56 AC Vane Pump

A Self-Priming, Sliding-Vane Fuel Dispensing pump, for use with Diesel & Bio Diesel

PLEASE NOTE - This pump has a 30 Minute Duty Cycle. It is therefore NOT recommended for any process applications, or for use on bio diesel processors. For process applications we recommend our FMT 23-034 Vane Pump, which will run continuously, the FMT 23-034 can be found HERE

Wetted Components
Pump Body	Cast Iron
Impellor Case	Cast Iron
Impellor Case Seal	Viton
Motor Shaft Seal	Viton
Vanes	Acetyl
Vane Springs	Steel
Rotor / Gear / Impellor	Steel
Shaft Key / Nut	Steel
Motor Shaft	Steel
Bypass Valve Piston	Acetyl
Bypass Valve Seal	Viton
Bypass Valve Spring	Stainless Steel

Performance
Piusi Part Number	000730380	000730070	000730000	000731000	000733000	000734000
Voltage / Frequency	110vAC 50Hz (EU)	110vAC 60Hz (USA)	230vAC 50Hz (EU)	230vAC 60Hz (Far East)	3 Phase 415vAC 50Hz (EU)	3 Phase 400vAC 60Hz (Far East)
kW	0.37	0.37	0.37	0.45	0.45	0.45
Amps
RPM	2800	3400	2800	3400	2800	3400
Duty Cycle	30 Minute	30 Minute	30 Minute	30 Minute	30 Minute	30 Minute
Cable Length	1m	1m	1m	1m	1m	1m
Bypass Valve Y/N	Y	Y	Y	Y	Y	Y
Max Flow	60 lpm	60 lpm	60 lpm	60 lpm	60 lpm	60 lpm
Discharge Pressure	1.8 Bar	1.8 Bar	1.8 Bar	1.8 Bar	1.8 Bar	1.8 Bar
Max Suction Lift (Dry)	3.0 m	3.0 m	3.0 m	3.0 m	3.0 m	3.0 m
Max Suction Lift (Wet)	3.0 m	3.0 m	3.0 m	3.0 m	3.0 m	3.0 m
Inlet Fitting	1" BSP	1" BSP	1" BSP	1" BSP	1" BSP	1" BSP
Outlet Fitting	1" BSP	1" BSP	1" BSP	1" BSP	1" BSP	1" BSP
Max Particle Tolerance	100 Micron	100 Micron	100 Micron	100 Micron	100 Micron	100 Micron
Max Liquid Temp	57°	57°	57°	57°	57°	57°
Min Liquid Temp
Max Room Temp	40°	40°	40°	40°	40°	40°
Min Room Temp
Thermal Protection Y/N	Y	Y	Y	Y	Y	Y
Max Liquid Viscosity	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Ingress Protection	IP55	IP55	IP55	IP55	IP55	IP55
Weight	7.4 kg	7.4 kg	7.4 kg	7.4 kg	7.4 kg	7.4 kg

Download Piusi Panther 56 AC Vane Pump - Catalogue Page PDF

Download Piusi Panther 56 - Manual PDF

Download Piusi Panther 56 - Spares Exploded Diagram PDF

Product Options:

(All prices include VAT)

110vAC 50Hz - (£247.00)
110vAC 60Hz - (£209.00)
230vAC 50Hz - (£142.50)
3-Phase 415vAC 50Hz - (£151.00)
Spare - Chamber Gasket - (£2.00)
Spare - Filter Gasket - (£4.00)
Spare - Vane Set - (£16.00)

Product Code: 020
