Piusi Panther 72 AC Vane Pumps

Product Information

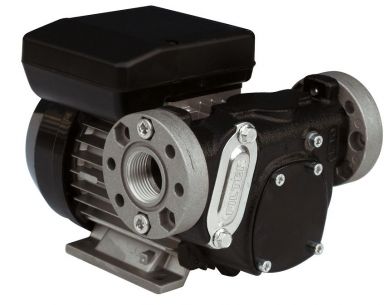

Piusi Panther 72 AC Vane Pumps

Self-Priming Rotary Vane Pumps, for use with Diesel and Biodiesel

PLEASE NOTE - This pump has a 30 Minute Duty Cycle. It is therefore NOT recommended for any process applications, or for use on bio diesel processors. For process applications we recommend our FMT 23-034 Vane Pump, which will run continuously, the FMT 23-034 can be found HERE

**Wetted Components**
Pump Body	Steel
Impellor Case	Cast Iron
Impellor Case Seal	Viton
Motor Shaft Seal	Viton
Vanes	Acetyl Resin
Vane Springs	Not Present
Rotor / Gear / Impellor	Steel
Shaft Key / Nut	Steel
Motor Shaft	Steel
Bypass Valve Piston	Acetyl Resin
Bypass Valve Seal	Viton
Bypass Valve Spring	Stainless Steel

**Performance**
Piusi Part Number	000732000	000735000
Voltage / Frequency	230vAC 50Hz (EU)	3-Phase 415vAC 50Hz (EU)
kW	0.90	0.90
Amps
RPM	2800	2800
Duty Cycle	30 Min	30 Min
Cable Length	2 m	2 m
Bypass Valve Y/N	Y	Y
Max Flow (Open)	80 lpm	80 lpm
Discharge Pressure	1.8 Bar	1.8 Bar
Max Suction Lift (Dry)	3.0 m	3.0 m
Max Suction Lift (Wet)	3.0 m	3.0 m
Inlet Fitting	1" BSP + Flange	1" BSP + Flange
Outlet Fitting	1" BSP + Flange	1" BSP + Flange
Max Particle Tolerance	100 Micron	100 Micron
Max Liquid Temp	57°	57°
Min Liquid Temp
Max Room Temp	40°	40°
Min Room Temp
Thermal Protection Y/N	Y	Y
Max Liquid Viscosity	Diesel	Diesel
Ingress Protection	IP55	IP55
