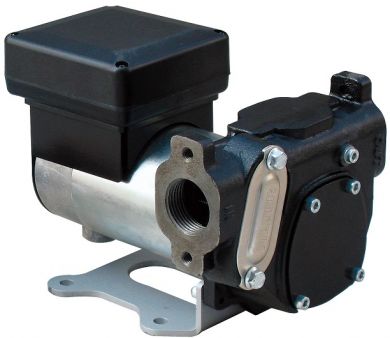

Piusi Panther DC Vane Pumps

Piusi Panther DC Vane Pumps

Product Information

Piusi Panther DC Vane Pumps

Rotary, Self Priming, Vane Pumps featuring high flow rates, and easy operation and installation. For use with Diesel & Biodiesel

Wetted Components
Pump Body Steel
Impellor Case Cast Iron
Impellor Case Seal Viton
Motor Shaft Seal Viton
Vanes Acetyl Resin
Vane Springs Not Present
Rotor / Gear / Impellor Steel
Shaft Key / Nut Steel
Motor Shaft Steel
Bypass Valve Piston Acetyl Resin
Bypass Valve Seal Viton
Bypass Valve Spring Stainless Steel
Performance
Piusi Part Number F0034000B F0034100C
Voltage / Frequency 12vDC Dual 12/24vDC
kW - -
Amps 35 25 @ 12v / 16 @ 24v
RPM 2900 1800 @ 12v / 3500 @ 24v
Duty Cycle 30 Min 30 Min
Cable Length 2 m 2 m
Bypass Valve Y/N Y Y
Max Flow (Open) 56 lpm 35 lpm @ 12v / 70 lpm @ 24v
Discharge Pressure
Max Suction Lift (Dry) 3 m 3 m
Max Suction Lift (Wet)
Inlet Fitting 1" BSP + Flange 1" BSP + Flange
Outlet Fitting 1" BSP + Flange 1" BSP + Flange
Max Particle Tolerance 100 Micron 100 Micron
Max Liquid Temp 57° 57°
Min Liquid Temp
Max Room Temp 40° 40°
Min Room Temp
Thermal Protection Y/N Y Y
Max Liquid Viscosity Diesel Diesel
Ingress Protection IP54 IP54
Weight 7.5 kg 7.5 kg

Download Piusi Panther DC Vane Pump - Catalogue Page PDFDownload Piusi Panther DC Vane Pump - Catalogue Page PDF

Download Piusi Panther DC - Manual PDFDownload Piusi Panther DC - Manual PDF

Download Piusi Panther DC - Spares Exploded Diagram PDFDownload Piusi Panther DC - Spares Exploded Diagram PDF

Product Options:

(All prices include VAT)

12vDC - (£158.00)
Dual Voltage 12/24vDC - (£208.00)
Spare - Chamber Gasket - (£2.00)
Spare - Filter Gasket - (£4.00)
Spare - Vane Set - (£16.00)

Product Code: PIUN5

Quantity: Add to Basket
