Oilybits UCO Titration Web App

Product Information

Oilybits, Titration Web App

FREE! - NO NEED TO ADD TO BASKET, JUST FOLLOW INSTRUCTIONS BELOW

Suitable for Iphone, Android, and many other phones, and for use when producing Biodiesel from Used Cooking Oil 'UCO'

To download the Oilybits Titration Web App, and add to your homepage just like a proper app, follow the simple instructions below;

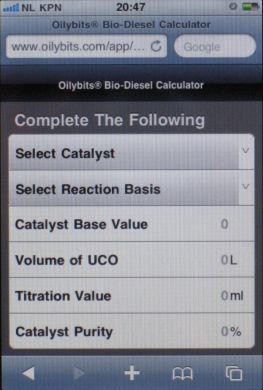

Open web browser and enter www.oilybits.com/app

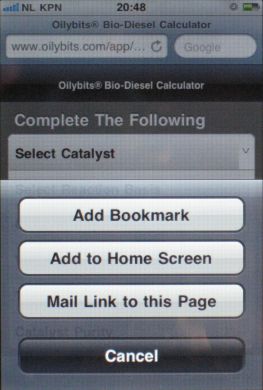

Select 'Add To Home Screen' and follow instructions

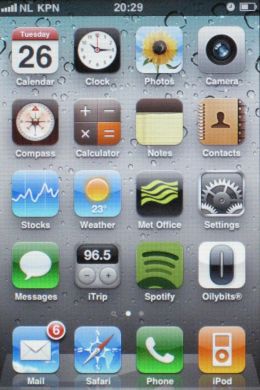

Oilybits Logo will appear in your home page

To use the Oilybits Titration Web App, follow the simple instructions below;

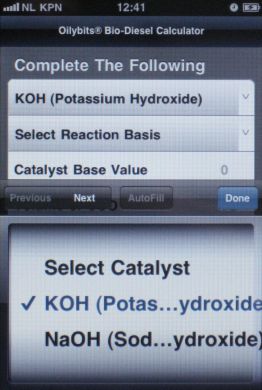

Select dropdown for Catalyst, enter your choice of Catalyst

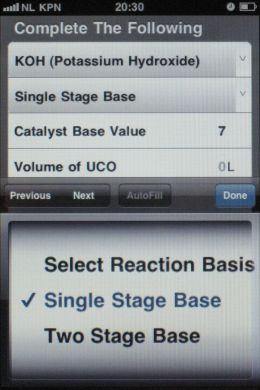

Select dropdown for Reaction Basis, enter your Reaction Basis

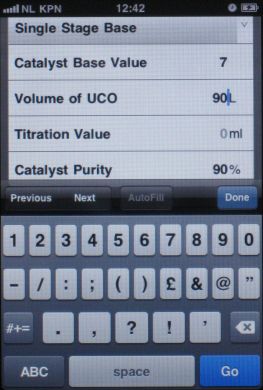

Enter volume of UCO you are using

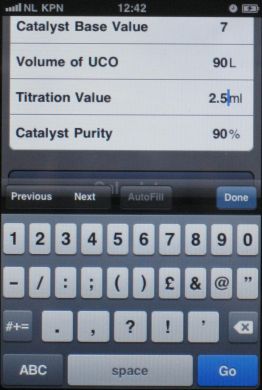

Enter Titration Value from your titration test

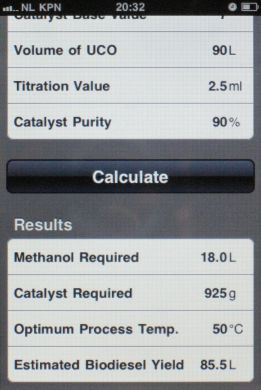

Click 'Calculate' Results shown accurately calculate the amount of Methanol and Catlayst you will require in your reaction, and the estimated amount of biodiesel you will produce from your reaction

Alternatively, this app can also be used via a normal PC, simply visit www.oilybits.com/app

NOTES ON FUNCTIONALITY:

• Perform your titration 3 times to ensure correct titration value is identified
• Catalyst Base Value is generated automatically based on the Base values used when converting Used Cooking Oil 'UCO'
• Catalyst Purity is generated automatically based on commonly available product (KOH 90%, NaOH 99%), but can be edited
• Methanol Required is calculated as 20% of the volume of UCO
• Catalyst Required takes into consideration an adjustment for catalyst purity, so ensure Catalyst Purity is correct
• Optimum process temperature is 50°c. Methanol Evaporates at 60°c and a 10°c differential is recommended
• Reaction Basis is the type of reaction you are performing. Single Stage Base is where 100% of the methoxide mixture is added to the UCO, this will never lead to a complete reaction but is easiest to perform, and methanol recovery in the same tank can take place before draining of the glycerol. Two Stage Base-Base is where 80% of the methoxide is added to the UCO, the Glycerol drained after the normal mixing time, then the final 20% Methoxide is added and mixed, followed by final Glycerol draining. This can result in a complete, or near ASTM/EN spec reaction, but the glycerol needs to be removed to another tank for methanol recovery as if it were put back into the biodiesel then the reaction could reverse producing glycerides
