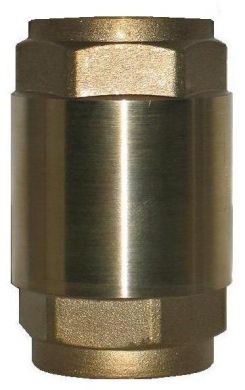

Itap Europa Spring Check / Non Return Valves, Brass

Product Information

Itap Europa, Brass Spring Check Valves

Most commonly used with Water and Diesel

Not for Kerosene or Petrol, Click HERE to go to a 3/8" valve with VITON seals for Kerosene and Petrol applications

Suitable for any liquids that are not agressive to the valves component materials
Brass body and pin
Stainless steel plate and spring
Seal: NBR
Can be installed in any position: vertical, horizontal, oblique
Working temperature: -20°c to 100 °c
3/8"-4" BSP Female threads to ISO 228 (equivalent to DIN 259 and BS2779)

Specification
Size	Diameter	Overall Length	Working Pressure (Bar)
1/4" BSP	28.1 mm	44.1 mm	16 (1/4" is not an Itap valve )
3/8" BSP	34.5 mm	55 mm	25
1/2" BSP	34.5 mm	58.5 mm	25
3/4" BSP	41.5 mm	65 mm	25
1" BSP	48 mm	74.5 mm	25
1.25" BSP	60.5 mm	83 mm	18
1.5" BSP	71 mm	93 mm	18
2" BSP	87 mm	101 mm	18
2.5" BSP	120 mm	122 mm	12
3" BSP	140.0 mm	141.5 mm	12
4" BSP	172.5 mm	172.5 mm	12

Download Itap Europa Check Valve - Technical PDF

Product Options:

(All prices include VAT)

1 Inch BSP - (£9.00)
1.25 Inch BSP - (£14.25)
1.5 Inch BSP - (£19.20)
1/2 Inch BSP - (£4.75)
1/4 Inch BSP - (£6.75)
2 Inch BSP - (£29.70)
2.5 Inch BSP - (£66.90)
3 Inch BSP - (£67.50)
3/4 Inch BSP - (£6.50)
3/8 Inch BSP - (£4.60)
4 Inch BSP - (£167.60)
