Aqua Aqua 20" Polypropylene / Polycarbonate Filter
  • Click to enlarge

Aqua 20" Polypropylene / Polycarbonate Filter

A quality Particulate filter, suitable for a wide range of liquids, subject to chemical compatibility with its component parts..

The filter and element are commonly described as 20", though it is around 24" total length and accepts a 20" long element

SEAL MATERIAL - This filter is supplied as standard with a NITRILE (Also known as BUNA-N or NBR) Top seal, this is the same material supplied with all other manufacturers filters of this type as they are designed for Water. If you intend to use the filter with Vegetable Oil or Bio Diesel, the Nitrile seal will swell and then become useless, it is therefore essential that a spare seal in VITON is purchased to replace the original seal. Viton seals are available in the product options below

PRESSURE FILTER - This is a pressure filter, it is designed to be fitted downstream of a pump of in a pressurised line, if it is fitted in a vacuum situation the red pressure-release button on the top will be drawn downward by the suction and will draw air into the system. It is possible for users to remove the button and replace with a bolt & nut if the filter is to be fitted in a vacuum situation

ELEMENT NOT INCLUDED - This Filter Housing accepts 20" Filter Elements, these are available HERE

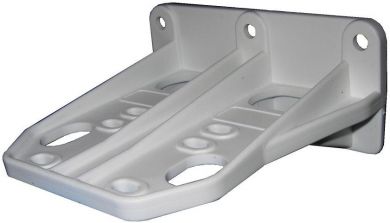

Optional Fitting Bracket Pictured Below;

Features
Dispensing MeansGravity or Pumped
Standard FilterParticulate Only
Inlet / Outlet Fittings1" BSP Female
SizeTBC
Max FlowUnknown
Max PressureUnknown

When replacing elements in filter housings with screw-on bowls we always recommend the use of Silicon O Ring Grease to aid tightening of the bowl, preventing pinching & scuffing and thus prolonging the life of the O Ring

Download Aqua FP3 Housings PDFDownload Aqua FP3 Housings PDF
