Cash Acme Type MC, Back Pressure Relief Valve
The back pressure relief valve Type MC is intended to maintain a constant pressure on the inlet side of an appliance.
- The valve has been designed with a metal to metal seat and although not suitable for installations where a drip tight shut off is required, it is suitable for use with oil, water and some gases.
- This unit can be used to maintain a constant pressure in an oil ring main or for by-pass protection on pumps as used in domestic water systems.
- With a body constructed of Bronze, it has a stainless steel ball seat and rust-proof monel spring, with adjustable screw and lock nut.
- It is suitable for inlet pressures of 15 to 125 lb/in2 and the Type Mc has a leak proof closing cap over the adjusting screw.

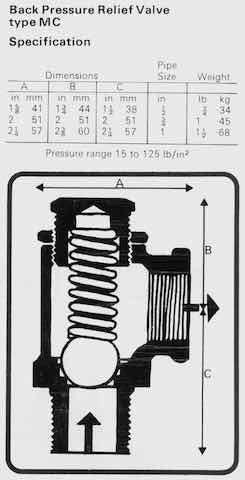

Specification| Inlet & Outlet Ports | 1/2, 3/4 and 1" BSP Female |
| Gauge Port | Not Applicable |
| Maximum Pressure | 125 PSI |
| Relief Pressure | Adjustable, 15-125 PSI |
| Maximum Temperature | TBC |
Download Cash Acme Type MC - Datasheet PDF
