Fill Rite FR705 & FR311 AC Pumps With Meter, ATEX Approved
  • Click to enlarge

Fill-Rite AC Pumps with Meter, ATEX Approved

Top quality, rainproof, self-priming gear pumps with Explosion-Proof motors and Atex (EU) approval for use with Petrol. Can also be used with Diesel, Kerosene, Mineral Spirits, Hexane, Heptane

Features a 2"BSPT drum thread for connection to 205 Litre Drums, and a 1"BSPP Inlet thread for fitting to an Adjustable Suction Tube


TWO Year Warranty

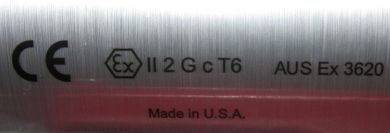

  • European; CE, ATEX/Ex Cat. II2GcT6, Sira Certificate Number; Sira04ATEX1242X
Flow (LPM) 70 120

Motor Horsepower

1/3 3/4
Motor Amps 22 13
Voltage Type 230 VAC 115/ 230 VAC
Suction Pipe 1" BSPP-F 1 1/2" BSPP-F
Meter Type 3 Wheel Mech 4 Wheel Mech
Meter 807CL1X418 901LX418
Totalizer Digits 6 7
Meter Accuracy +/- 1% +/- 2%
Max Pressure 3.5 Bar (50 PSI) 3.5 Bar (50PSI)
Max Suction Lift 3.0 m Petrol, 4.5 m Diesel 3.0 m Petrol, 4.5 m Diesel
Hz 50/60 50/60
Thermal Overload Protection Yes Yes
Inlet Port 2" BSPT-F 2" BSPT-F
Outlet Port 1" BSPT-F 1" BSPT-F
Tank Adapter 2" BSPT-M 2" BSPT-M
By Pass Valves Yes Yes
Bult in Strainer Yes
Anti-Siphon Valve Available Yes Yes
Duty Cycle 30 Minutes 30 Minutes
Built-In Check Valve Yes Yes
Weight 25 Kg 41 Kg
Wetted Components
Pump Body Cast Iron
Impellor Case Cast Iron
Impellor Case Seal Viton
Motor Shaft Seal Viton
Vanes Bronze
Vane Springs Not Present
Rotor / Gear / Impellor Steel
Shaft Key / Nut Stainless Steel
Motor Shaft Stainless Steel
Bypass Valve Piston
Bypass Valve Seal Viton
Bypass Valve Spring Stainless Steel

Download Fill Rite FR700 & FR701 - Manual PDFDownload Fill Rite FR700 & FR701 - Manual PDF

Download Fill Rite FR700 & FR701 - ATEX Certificate PDFDownload Fill Rite FR700 & FR701 - Atex Certificate PDF

Download Tuthill Fillrite FR705 FR311 Full OptionsDownload Tuthill Fillrite FR705 FR311 Full Options

Product Options


Product Code FILG20
Condition New
