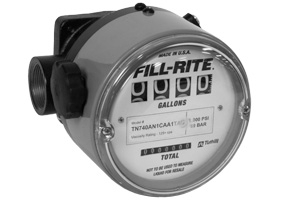

Fill Rite TN Series Nutating Disc Mechanical Flow Meters
  • Click to enlarge

Fill Rite TN Series Nutating Disc Mechanical Flow Meters

As well as being known for their rugged dependability, the Fill-Rite TN meters utilize positive displacement nutating disc technology for use in non-custody transfer applications such as inventory control of refined petroleum products and non-corrosive chemicals.

High pressure versions are available in two model sizes (TN700 and TN800 series) for use in automotive fluid distribution systems, lube trucks, and similar service. With a viscosity range from 1 to 50,000 cSt, these meters can handle a wide range of temperature and viscosity conditions for a versatile solution to your metering needs.

Part No. Digit Position
1,2 TN TN TN TN TN
3, 4 , 5, 6, 7, 8, 9 740AN1C 760AN1C 860AN1C 860AN1C 860AN1
10, 11, 12 BA1 BB1 BB1 BB2 BB2
13, 14, 15 LAI LAF LAC LAC LBC
Flow (LPM) 1.9 - 38 2.9 - 57 23 - 230 23 - 230 23 - 230
Max Pressure (bar) 69.0 27.6 10.3 10.3 10.3
Inlet Port 1"BSPP-F 1.5" BSPP-F 1.5" BSPPF-F 1.5" BSPP-F 1.5" BSPP-F
Outlet Port 1" BSPP-F 1.5" BSPP-F 1.5" BSPP-F 1.5" BSPP-F 1.5" BSPP-F
Strainer No No No No No
Meter Type 4 Wheel Mech 4 Wheel Mech 4 Wheel Mech 4 Wheel Mech 4 Wheel Mech
Seals Viton Viton Viton Viton Viton
Principal Nutating Disk Nutating Disk Nutating Disk Nutating Disk Nutating Disk
Max Temp. (Celsius) 75C 75C 75C 75C 75C
Pulsed Output No No No No No
Totalizer Digits 8 8 8 8 8
Meter Accuracy +/- 2.00% +/- 2.00% +/- 2.00% +/- 2.00% +/- 2.00%
Viscosity Range (Cp) 125+ 125+ 3 to 22 1 to 2 1 to 2
Fluid types High Viscosity Lube Oil High Viscosity Lube Oil Diesel, Biodiesel, Kerosene, Jet A1 Gasoline, Water Bioethanol E85, Ethanol E100, ALS, Solvents

Download Tuthill Fillrite TN Full OptionsDownload Tuthill Fillrite TN Full Options

Product Options

£663.30


Product Code FILTALP8330
Condition New
