FMT SwissAG, AC Vane Pump, 60 lpm
A top quality, Swiss-made sliding-vane pump, designed for use with diesel and other products which are not agressive to the pumps component materials. Due to their unsurpassed reliability on continuous duty operations, these can also be used as process pumps
The "Viton 70" seals will provide a longer service life when used with Bio Diesel or Vegetable Oil products as Viton is more resistant to these products
Wetted Components| Pump Body | Aluminium AiSi12 (Sea Water Resistant) |
| Impellor Case | Aluminium AiSi12 (Sea Water Resistant) |
| Impellor Case Seal | NBR 70 |
| Motor Shaft Seal | Viton 70 |
| Vanes | PEI (200 Times harder than Acetyl) |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | Steel GG25 |
| Shaft Key / Nut | Steel GG25 |
| Motor Shaft | Steel GG25 |
| Bypass Valve Piston | Acetyl |
| Bypass Valve Seal | Viton |
| Bypass Valve Spring | Stainless Steel |
Performance| Voltage / Frequency | 230v / 50Hz or 110v / 50 Hz |
| kW | 0.37 |
| Amps | 2.4 |
| RPM | 2800 |
| Duty Cycle | Continuous |
| Cable Length | 2 m |
| Bypass Valve Y/N | Y |
| Max Flow | 60 lpm @ 0 m head |
| Discharge Pressure | 1.8 Bar / 26 PSI |
| Max Suction Lift (Dry) | 4.0 m |
| Max Suction Lift (Wet) | |
| Inlet Fitting | 1" BSP |
| Outlet Fitting | 1" BSP |
| Max Particle Tolerance | 100 Micron |
| Max Liquid Temp | 55 Celcius |
| Min Liquid Temp | |
| Max Room Temp | 40 Celcius |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Max Liquid Viscosity | Diesel |
| Ingress Protection | IP54 |
Spare Part Numbers| Part | FMT Part Number |
| Chamber Gasket | 82-673 |
| Shaft Seal | |
| Figure 8 Gasket | 82-515 |
| Vane NEW, With Indent | 89-254 |
| Vane OLD, No Indent | 89-254-OLD |

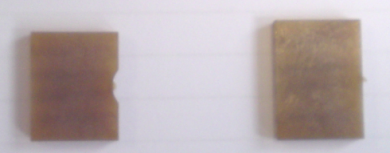

When ordering replacement vanes, please note that there are 2 types of vane used in 23-031, and it is impossible to tell which vane is in the pump without removing the vane and inpecting it physially. The vane will either hve 4 straight edges, or one edge with a "D" shape in it - please see image below. When ordering vanes please check this first as the vanes are not inter-changeable
